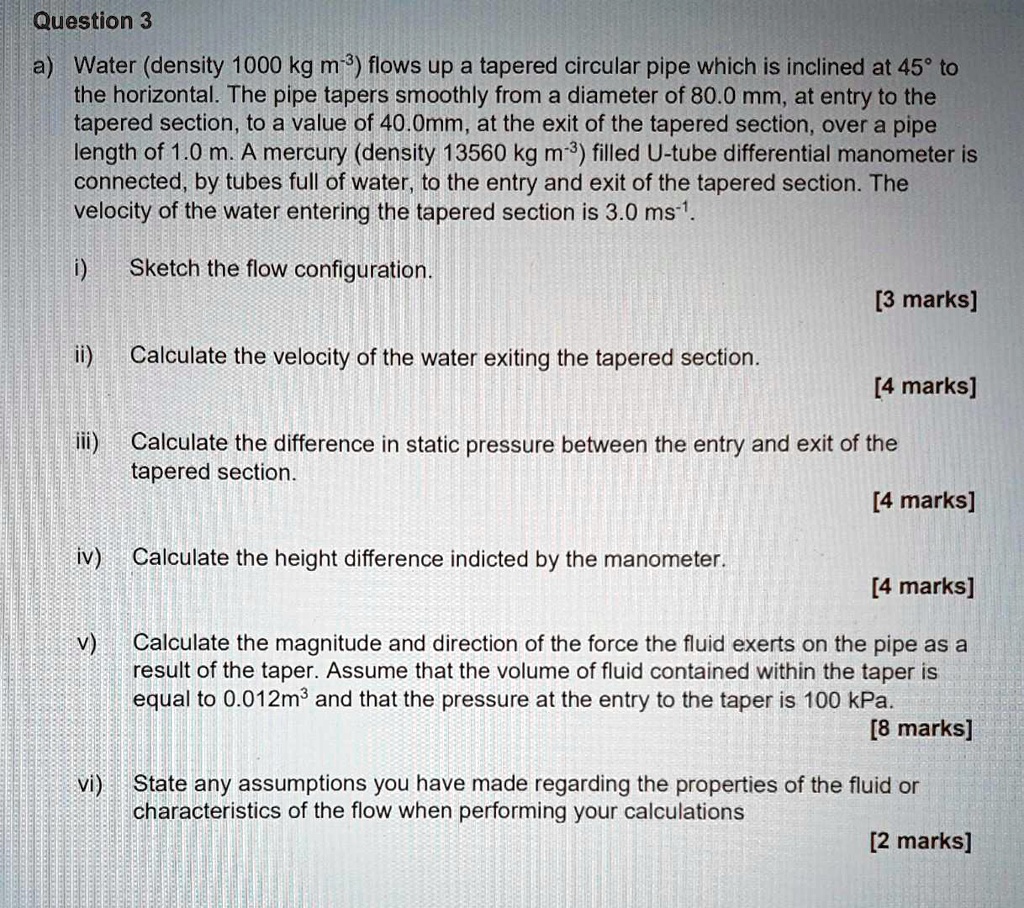

Question 3 a) Water (density 1000 kg m?³) flows up a tapered circular pipe which is inclined at 45° to the horizontal. The pipe tapers smoothly from a diameter of 80.0 mm, at entry to the tapered section, to a value of 40.0mm, at the exit of the tapered section, over a pipe length of 1.0 m. A mercury (density 13560 kg m?³) filled U-tube differential manometer is connected, by tubes full of water, to the entry and exit of the tapered section. The velocity of the water entering the tapered section is 3.0 ms?¹. i) Sketch the flow configuration. [3 marks] ii) Calculate the velocity of the water exiting the tapered section. [4 marks] iii) Calculate the difference in static pressure between the entry and exit of the tapered section. [4 marks] iv) Calculate the height difference indicted by the manometer. [4 marks] v) Calculate the magnitude and direction of the force the fluid exerts on the pipe as a result of the taper. Assume that the volume of fluid contained within the taper is equal to 0.012m³ and that the pressure at the entry to the taper is 100 kPa. [8 marks] vi) State any assumptions you have made regarding the properties of the fluid or characteristics of the flow when performing your calculations [2 marks]
Added by Carolina H.
Close
Step 1
The pipe diameter decreases from 80mm at the entry to 40mm at the exit. A U-tube manometer filled with mercury is connected to the entry and exit of the tapered section. ii) The velocity of the water exiting the tapered section can be calculated using the Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Water flows in the sloped pipe shown in the figure. At point 1, the cross-sectional area is 3.0 cm² and at point 2, the cross-sectional area is 2.0 cm². The fluid in the manometer is mercury, which has a density 13.6 times the density of water. If the distance along the pipe between Points 1 and 2 is 26.2 cm and the water speed at Point 1 is 0.28 m/s, how fast is the water moving at Point 2? What is the height difference h between the two sides of mercury? (Treat the water as an ideal fluid in laminar flow. Use 9.8 m/s² for gravitational acceleration.)
Sri K.
The Venturi Effect describes how pressure reduces as a fluid flows through a narrowed section of a pipe. (a) 3 points Consider a pipe with a narrowed neck area (called a venturi), with diameter D1 that has a tube attached to it, which can draw water from a reservoir, as seen in Fig. 1(a). Water flows with some speed V1 at the neck and V2 at the pipe exit (both unknown). At the pipe exit (diameter D2), water flows out into the atmosphere. Find an expression for the minimum V1 needed to draw water from the reservoir, neglecting frictional losses. (b) 3 points A venturi meter introduces a narrowed part with a manometer between two sections of a pipe, as shown in Fig. 1(b), to measure the flow rate in a pipe. Use the Bernoulli equation to show that the volumetric flow rate, Q, can be expressed as: Q = pi/4 * sqrt((2gh(rho_m - rho_w)) / (rho_w(1/D2^4 - 1/D1^4))) i.e. as a function of the manometer reading h, the densities of the water and mercury rho_w and rho_m, and the diameters of the pipe sections D1 and D2. Neglect frictional losses.
Adi S.
A pipe with a bore diameter of 100 mm carries oil with a density of 900 kg/m3 at a rate of 4 kg/s. The pipe then reduces to a bore diameter of 60 mm and rises 120 m in altitude. The pressure at this point is atmospheric (zero gauge). Assuming no frictional losses, determine: i. The volume/s ii. The velocity at each section iii. The pressure at the lower end. (4.44 dm3/s) (0.566 m/s and 1.57 m/s) (1.06 MPa) A pipe with a bore diameter of 120 mm carries water with a head of 3 m. The pipe descends 12 m in altitude and reduces to a bore diameter of 80 mm. The pressure head at this point is 13 m. The density is 1000 kg/m3. Assuming no losses, determine: i. The velocity in the small pipe ii. The volume flow rate. (7 m/s) (35 dm3/s) A horizontal nozzle reduces from a bore diameter of 100 mm at the inlet to 50 mm at the exit. It carries liquid with a density of 1000 kg/m3 at a rate of 0.05 m3/s. The pressure at the wide end is 500 kPa (gauge). Calculate the pressure at the narrow end neglecting friction. (196 kPa) A pipe carries oil with a density of 800 kg/m3. At a given point (1), the pipe has a bore area of 0.005 m2 and the oil flows with a mean velocity of 4 m/s with a gauge pressure of 800 kPa. Point (2) is further along the pipe and there the bore area is 0.002 m2 and the level is 50 m above point (1). Calculate the pressure at this point (2). Neglect friction. (374 kPa)
