question 3 calculate the heat loss of a horizontal steam pipe with an outside diameter of 40 mm and temperature of 738 K, if the surrounding air temperature is given as 623 K. Take the emissivity of the pipe as 0.9 1. Radiation 2.Convection
Added by Khono
Step 1
Radiation: The heat loss due to radiation can be calculated using the Stefan-Boltzmann law, which states that the power radiated per unit area of a black body is directly proportional to the fourth power of its absolute temperature. The formula is: Q_rad = Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 74 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

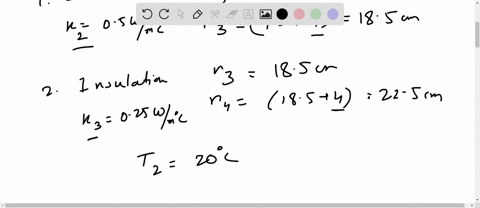

A hot steam pipe having an inside surface temperature of 250ºC has an inside diameter of 8 cm and a wall thickness of 5.5 mm. It is covered with a 9-cm layer of insulation having k = 0.5 W/m · ºC, followed by a 4-cm layer of insulation having k = 0.25 W/m · ºC. The outside temperature of the insulation is 20ºC. Calculate the heat lost per meter of length. Assume k = 47 W/m · ºC for the pipe.
Supratim P.
Heat Transfer Q2. A hot steam pipe, with an inside surface temperature of 250°C, has an inside diameter of 8 cm and a wall thickness of 5.5 mm. It is covered with a 9-cm layer of insulation, which has a thermal conductivity (k) of 0.5 W/m·°C. This is followed by a 4-cm layer of insulation, which has a thermal conductivity (k) of 0.25 W/m·°C. The outside temperature of the insulation is 20°C. Assuming the thermal conductivity (k) of the pipe is 47 W/m·°C, calculate the heat lost per meter of length.
Adi S.
Heat Loss from Temperature Measurements. A steel pipe carrying steam has an outside diameter of 89 mm. It is lagged with 76 mm of insulation having an average k = 0.043 W/m · K. Two thermocouples, one located at the interface between the pipe wall and the insulation and the other at the outer surface of the insulation, give temperatures of 115°C and 32°C, respectively. Calculate the heat loss in W per m of pipe.
