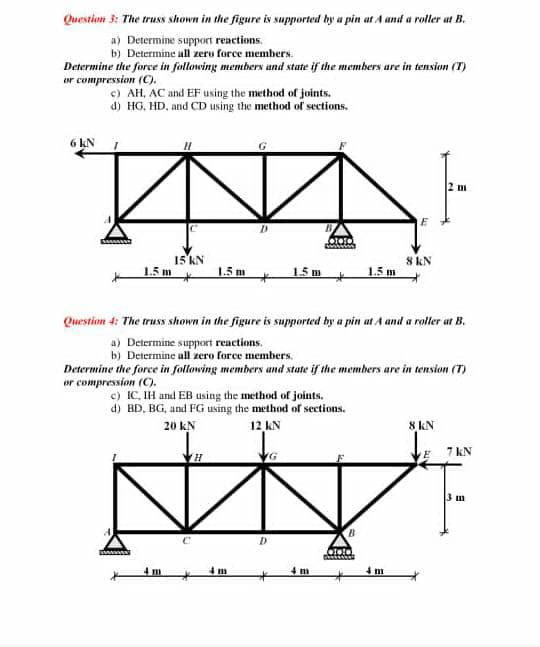

Question 3: The truss shown in the figure is supported by a pin at A and a roller at \( B \). a) Determine support reartions. b) Determine ull zeru force members. Determine the force in following members and state if the members are in tensian (T) or compression (C). c) \( \mathrm{AH}, \mathrm{AC} \) and \( \mathrm{EF} \) using the method of joints. d) HC, HD. and CD using the method of sections. Question ti: The truss shown in the figure is supported by a pin at A and a roller at B. a) Determine support reactions. b) Determine all zero force members. Determine the force in following members and stafe if the members are in tension (T) or compression (C). c) IC, IH and EB using the method of joints. d) \( \mathrm{BD}, \mathrm{BG} \), and \( F G \) using the method of sections.
Added by علي ا.
Close
Step 1
### Part a: Determine Support Reactions ** Show more…
Show all steps
Your feedback will help us improve your experience
Rachel Gore and 97 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Question 3: For the given figure below: Using method of joints, determine the force in each member of the truss by performing the following: a) Draw the Free-Body Diagram (FBD) of joint C and using equations of equilibrium to find the needed forces with stating if it is tension or compression. b) Draw the Free-Body Diagram (FBD) of joint B and using equations of equilibrium to find the needed forces with stating if it is tension or compression. c) Draw the Free-Body Diagram (FBD) of joint A and using equations of equilibrium to find the needed forces with stating if it is tension or compression. d) Draw the Free-Body Diagram (FBD) where all the found forces are shown on joints and members with writing for members if it is in tension or compression. You are required to show your steps clearly and neatly.
Sri K.
Question 3: For the given figure below: Using the method of joints, determine the force in each member of the truss by performing the following: a) Draw the Free-Body Diagram (FBD) of joint C and use equations of equilibrium to find the needed forces, stating if it is tension or compression. b) Draw the Free-Body Diagram (FBD) of joint B and use equations of equilibrium to find the needed forces, stating if it is tension or compression. c) Draw the Free-Body Diagram (FBD) of joint A and use equations of equilibrium to find the needed forces, stating if it is tension or compression. d) Draw the Free-Body Diagram (FBD) where all the found forces are shown on joints and members, indicating if each member is in tension or compression. You are required to show your steps clearly and neatly.
Question (50pts.): For the truss and loading given below: a) Draw the free-body diagram of the truss. (5 pts.) b) Calculate the support reactions at supports A and B. (3 x 4 pts.) c) Determine the magnitude and direction of the internal forces in truss members. • Analyze joint A. Find the magnitude and direction of the internal forces in members AD and AC. (2 x 4 pts.) • Analyze joint B. Find the magnitude and direction of the internal forces in members BC and BE. (2 x 4 pts.) • Analyze joint D. Find the magnitude and direction of the internal forces in members DE and DC. (2 x 4 pts.) • Analyze joint E. Find the magnitude and direction of the internal force in member EC. (4 pts.) d) Draw a diagram of the truss. Write the magnitude and direction of the internal forces in truss members on the diagram as shown in lecture notes. (5 pts.) 12kN 7 kN D E 13m A 60º 60º B 15m C 15m
