QUESTION 3 – Venturi meters A venturi is connected into a diesel pipe line $\emptyset$ 76 mm, the throat diameter of the venturi equals 38mm and the pressure difference is measured by means of a mercury U tube manometer. The level difference in the mercury manometer = 226 mm. Using the Bernoulli energy equation. Calculate 2.1) The coefficient of discharge for the venturi meter if it takes 240 seconds to fill a 2200 litre tank. The specific gravity of diesel = 0.890 Total [12]

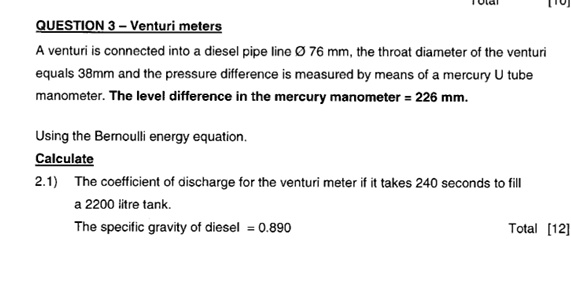

          QUESTION 3 – Venturi meters
A venturi is connected into a diesel pipe line $\emptyset$ 76 mm, the throat diameter of the venturi equals 38mm and the pressure difference is measured by means of a mercury U tube manometer. The level difference in the mercury manometer = 226 mm.
Using the Bernoulli energy equation.
Calculate
2.1) The coefficient of discharge for the venturi meter if it takes 240 seconds to fill a 2200 litre tank.
The specific gravity of diesel = 0.890
Total [12]

Show more…

question 3 venturi meters a venturi is connected into a diesel pipe line emptyset 76 mm the throat diameter of the venturi equals 38mm and the pressure difference is measured by means of a m 36567

Added by Scott K.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Andreas Papavassiliou

12/09/2024

Step 1

Pipe diameter, $D_1 = 76 \text{ mm} = 0.076 \text{ m}$ Throat diameter, $D_2 = 38 \text{ mm} = 0.038 \text{ m}$ Level difference in mercury manometer, $h_m = 226 \text{ mm} = 0.226 \text{ m}$ Time to fill tank, $t = 240 \text{ s}$ Volume of tank, $V = 2200 \text{ Show more…
