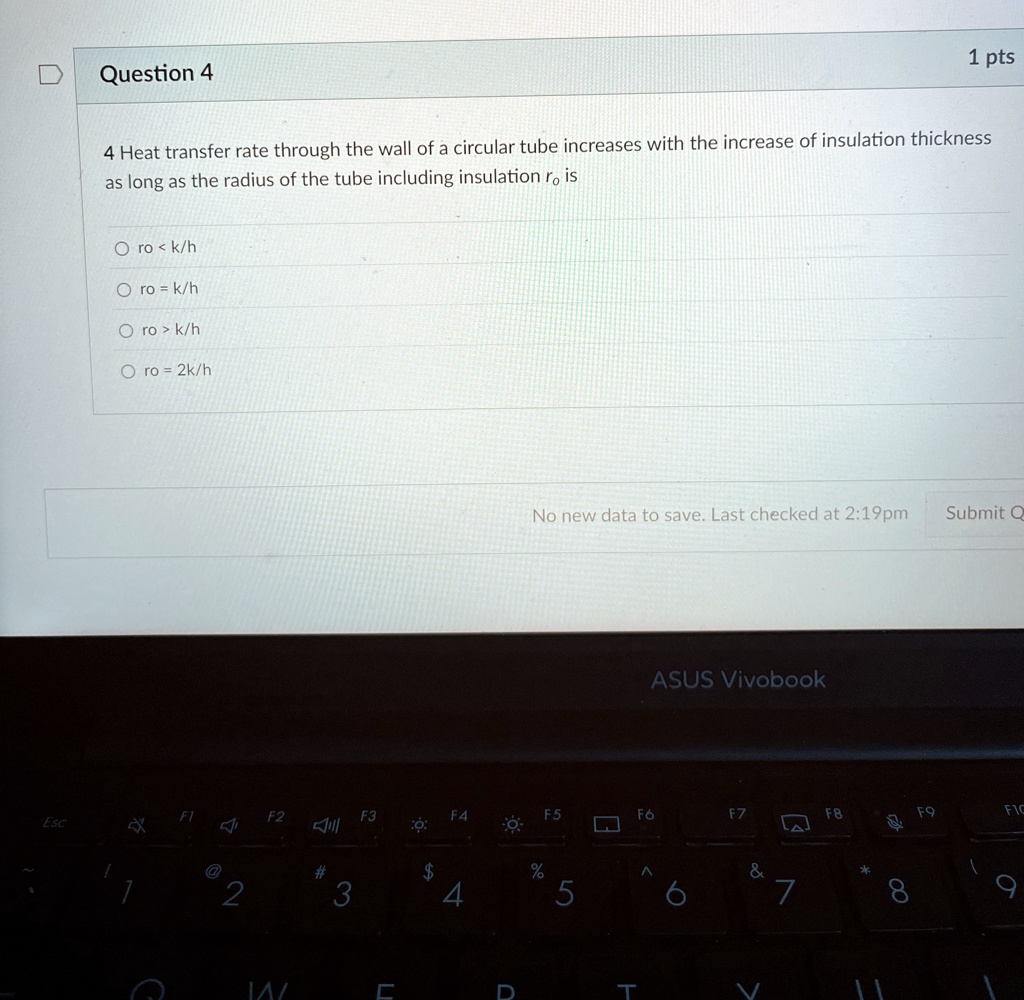

          Question 4
1 pts
4 Heat transfer rate through the wall of a circular tube increases with the increase of insulation thickness
as long as the radius of the tube including insulation $r_o$ is

$r_o < k/h$
$r_o = k/h$
$r_o > k/h$
$r_o = 2k/h$

question 4 1 pts 4 heat transfer rate through the wall of a circular tube increases with the increase of insulation thickness as long as the radius of the tube including insulation ro is r 28245

Added by Lisa F.

Elementary and Intermediate Algebra

Alan S. Tussy, R. David Gustafson 5th Edition

Instant Answer

Solved by Expert Adi S

07/19/2023

Step 1

The heat transfer rate increases with the increase of insulation thickness as long as the radius of the tube including insulation $r_o$ is less than the critical radius. The critical radius of insulation for a cylinder is given by $r_c = \frac{k}{h}$, where $k$ is Show more…
