Question 4 (4 points) A voltmeter and ammeter have been connected in series with two resistors, as shown below. You should assume the ammeter - A - and voltmeter - V - are "ideal", and that the wires have no resistance. The reading on the ammeter (in Amps) is: ?Vbatt = 400 volts A 100 ? V 100 ? 0.5 2.0 4.0 zero
Added by Jose Francisco V.
Close
Step 1
Step 1: Calculate the equivalent resistance of the circuit by adding the resistances of R1 and R2. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Madhur L.

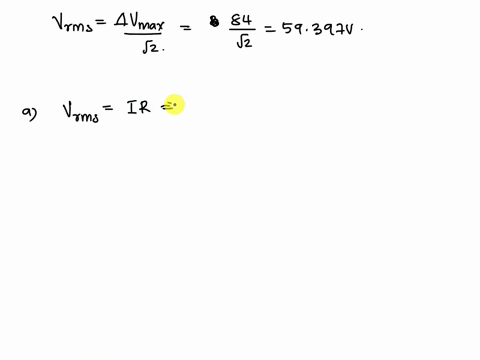

The circuit below shows an AC power supply connected to a resistor R = 27.2 Ω. The current through the resistor is measured by an ideal AC ammeter (has zero resistance), and the potential difference across the resistor is measured by an ideal voltmeter (has infinite resistance). If the maximum voltage supplied by the power supply is ΔVmax = 84.0 V, determine the following: (a) reading on the ammeter (in A) (b) reading on the voltmeter (in V)
Supreeta N.

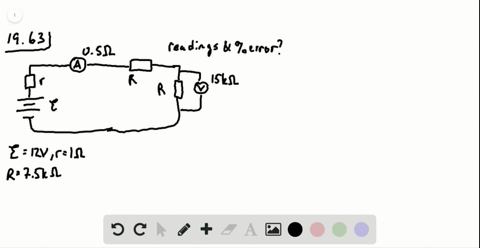

(III) A battery with $\mathscr{E} =$ 12.0 V and internal resistance $r =$ 1.0 $\Omega$ is connected to two 7.5-k$\Omega$ resistors in series. An ammeter of internal resistance 0.50 $\Omega$ measures the current, and at the same time a voltmeter with internal resistance 15 k$\Omega$ measures the voltage across one of the 7.5-k$\Omega$ resistors in the circuit.What do the ammeter and voltmeter read? What is the %"error" from the current and voltage $without$ meters?
DC CIRCUITS
Ammeters and Voltmeters-Measurement Affects the Quantity Being Measured
