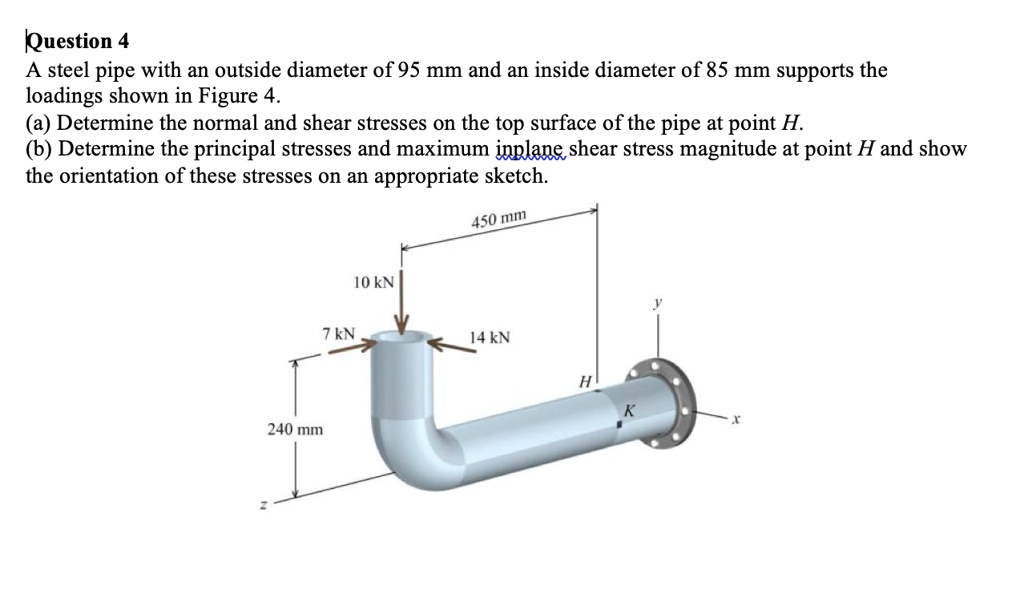

          Question 4
A steel pipe with an outside diameter of 95 mm and an inside diameter of 85 mm supports the
loadings shown in Figure 4.
(a) Determine the normal and shear stresses on the top surface of the pipe at point H.
(b) Determine the principal stresses and maximum inplane shear stress magnitude at point H and show
the orientation of these stresses on an appropriate sketch.
240 mm
7 kN
450 mm
10 kN
14 kN
H
K
y

question 4 a steel pipe with an outside diameter of 95 mm and an inside diameter of 85 mm supports the loadings shown in figure 4 a determine the normal and shear stresses on the top surface 19825

Added by Joseph N.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

07/02/2023

Step 1

Calculate the geometric properties of the pipe:** * Outside diameter, $D_o = 95 \text{ mm} = 0.095 \text{ m}$ * Inside diameter, $D_i = 85 \text{ mm} = 0.085 \text{ m}$ * Outside radius, $R_o = D_o / 2 = 0.095 / 2 = 0.0475 \text{ m}$ * Inside radius, $R_i Show more…

Show all steps
