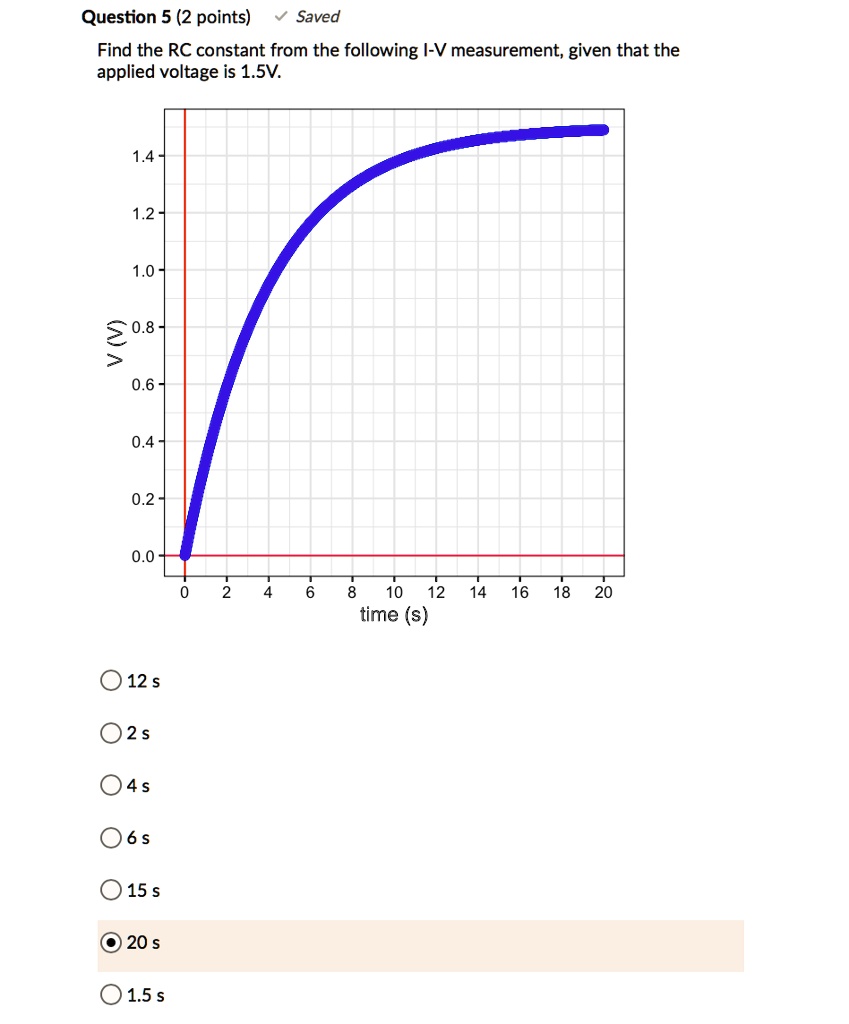

Find the RC constant from the following I-V measurement, given that the applied voltage is 1.5V. 12 s 2 s 4 s 6 s 15 s 20 s 1.5 s
Added by Adri-N G.
Close
Step 1
2% of its final value when charging. In this case, the applied voltage is 1.5V, so we need to find the time at which the voltage reaches 0.945V (63.2% of 1.5V). Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

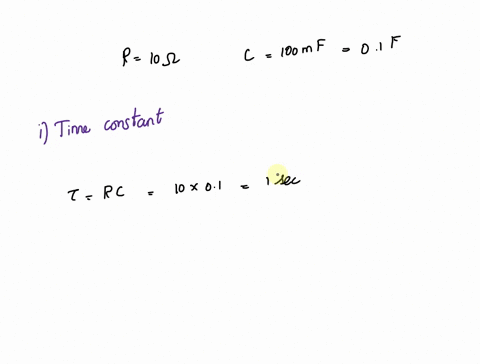

What is the time constant of an RC circuit? Explain and calculate for a given value. Use the RC values of R=10 ohm and C=100mF. In relation to the above formula, calculate the voltage on the capacitor at time t=5s if RC is the same as in part (a).
Madhur L.

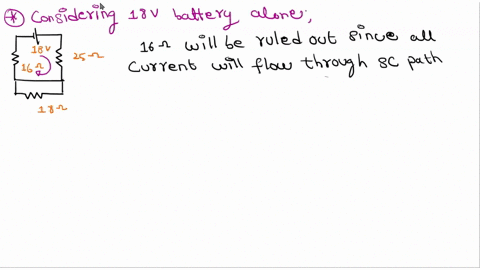

Three resistors and two batteries are connected as shown in the circuit diagram. What is the magnitude of the current through the 25-Ω resistor?
Sparsha S.

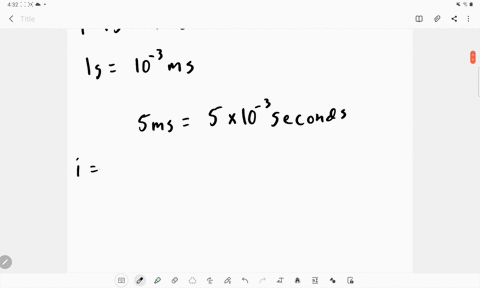

Solve the given problems. The electric current $i$ (in $\mathrm{mA}$ ) in the circuit shown in Fig. 13.4 is $i=2.5\left(1-e^{-0.10 t}\right),$ where $t$ is the time (in $\mathrm{s}$ ). Evaluate $i$ for $t=5.0 \mathrm{ms}\left(1 \mathrm{ms}=10^{-3} \mathrm{s}\right)$.
Exponential and Logarithmic Functions
Exponential Functions
