The current vs. voltage behavior of a certain electrical device is shown figure below. When the potential difference 3 V, what is the across the device is resistance? Current (A) 3 2 1 0 0 1 2 3 4 Voltage (V) 1.2 1.33 3.0 0.83
Added by Brittany T.
Close
Step 1
From the graph, we can see that the current is approximately 4 A. Show moreā¦
Show all steps
Your feedback will help us improve your experience
Madhur L and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

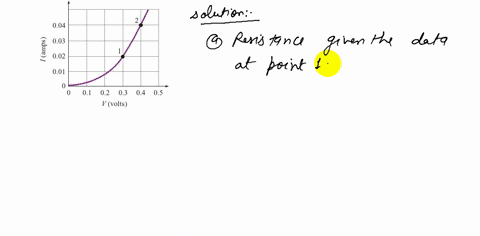

An electrical device has the current-voltage $(I-V)$ graph shown. What is its resistance at (a) point 1 and (b) point 2? [Hint: Use the definition of resistance.]
A certain electric device has the current-voltage $(I-V)$ graph shown with Problem $30 .$ What is the power dissipated at points 1 and $2 ?$
