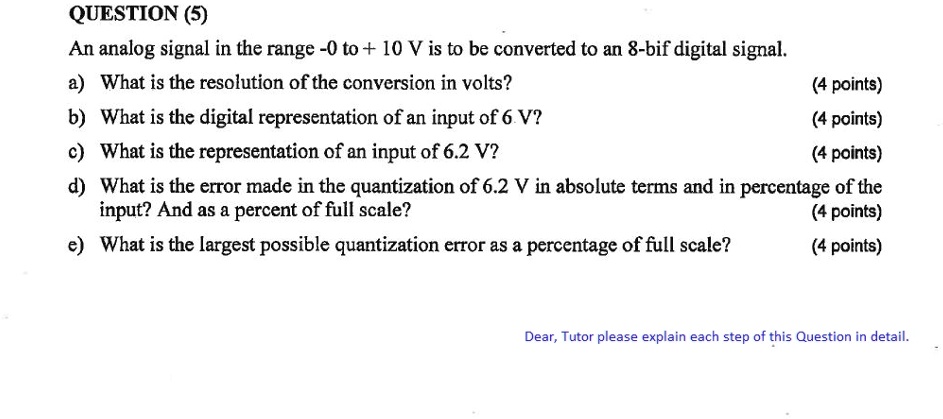

QUESTION (5) An analog signal in the range -0 to + 10 V is to be converted to an 8-bit digital signal. a) What is the resolution of the conversion in volts? (4 points) b) What is the digital representation of an input of 6 V? (4 points) c) What is the representation of an input of 6.2 V? (4 points) d) What is the error made in the quantization of 6.2 V in absolute terms and in percentage of the input? And as a percent of full scale? (4 points) e) What is the largest possible quantization error as a percentage of full scale? (4 points)

          QUESTION (5)
An analog signal in the range -0 to + 10 V is to be converted to an 8-bit digital signal.
a) What is the resolution of the conversion in volts?
(4 points)
b) What is the digital representation of an input of 6 V?
(4 points)
c) What is the representation of an input of 6.2 V?
(4 points)
d) What is the error made in the quantization of 6.2 V in absolute terms and in percentage of the
input? And as a percent of full scale?
(4 points)
e) What is the largest possible quantization error as a percentage of full scale?
(4 points)

QUESTION (5)
An analog signal in the range -0 to + 10 V is to be converted to an 8-bit digital signal.
a) What is the resolution of the conversion in volts?
(4 points)
b) What is the digital representation of an input of 6 V?
(4 points)
c) What is the representation of an input of 6.2 V?
(4 points)
d) What is the error made in the quantization of 6.2 V in absolute terms and in percentage of the
input? And as a percent of full scale?
(4 points)
e) What is the largest possible quantization error as a percentage of full scale?
(4 points)
