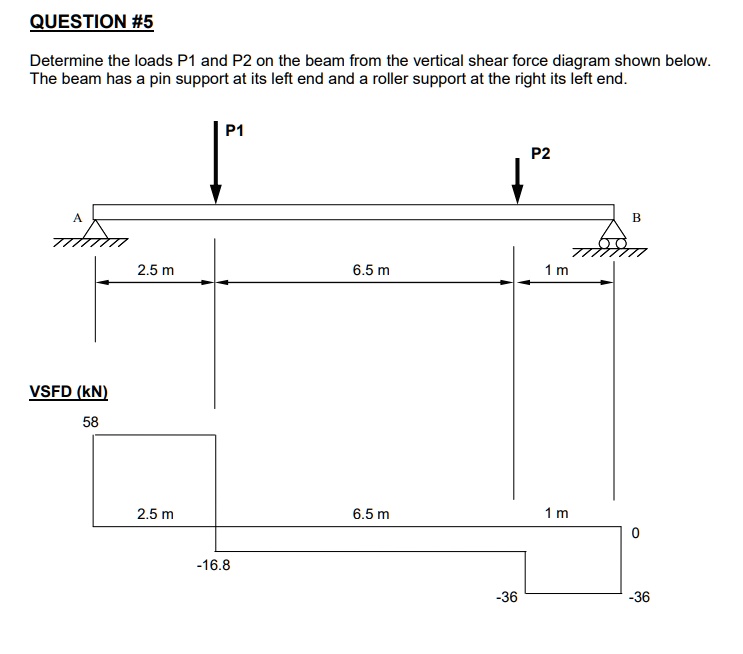

QUESTION #5 Determine the loads P1 and P2 on the beam from the vertical shear force diagram shown below. The beam has a pin support at its left end and a roller support at the right its left end. A VSFD (kN) 58 P1 P2 2.5 m 6.5 m 1 m 2.5 m -16.8 B 6.5 m 1 m 0 -36 -36
Added by Valerie S.
Close
Step 1
Since the left end of the beam has a pin support, it can only provide a vertical reaction force. Let's call this force R1. Show moreā¦
Show all steps
Your feedback will help us improve your experience
Julie Silva and 74 other Algebra educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A wood beam AB supporting two concentrated loads P (see Fig:) has a rectangular cross-section of width b = 130 mm and height h = 150 mm (see Fig: b). The distance from each end of the beam to the nearest load is a = 1.0 m. Determine the maximum permissible value Pmax of the loads if the allowable stress in bending is Oallow = 12 MPa and the allowable stress in horizontal shear is Tallow = 1.2 MPa. (Disregard the weight of the beam itself)
Arjun C.

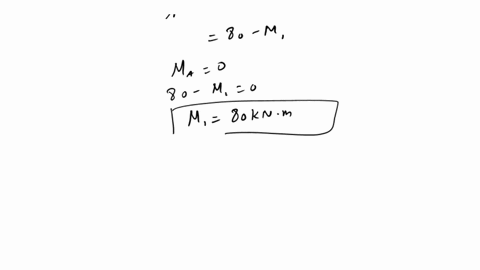

Draw the shear and moment diagrams for the loaded cantilever beam where the end couple M1 is adjusted so as to produce zero moment at the fixed end of the beam. Find the bending moment M at x = 2 m. 10 kN/m M1
