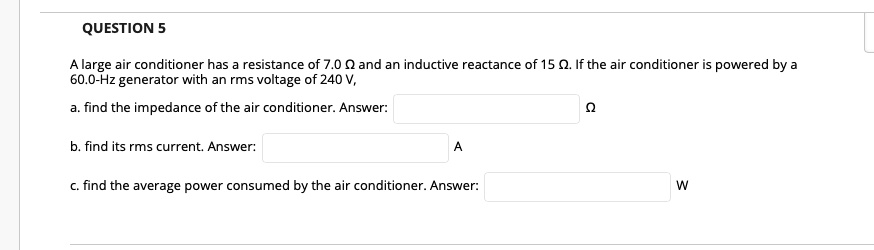

A large air conditioner has a resistance of 7.0 ? and an inductive reactance of 15 ?. If the air conditioner is powered by a 60.0-Hz generator with an rms voltage of 240 V, a. find the impedance of the air conditioner. Answer: ? b. find its rms current. Answer: A c. find the average power consumed by the air conditioner. Answer: W
Added by Remedios S.
Close
Step 1
0 \, \Omega\) and \(X_L = 15.0 \, \Omega\). \[Z = \sqrt{7.0^2 + 15.0^2} = \sqrt{49 + 225} = \sqrt{274} \approx 16.55 \, \Omega\] Show more…
Show all steps
Your feedback will help us improve your experience
Suman K and 98 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A large air conditioner has a resistance of 6.0 Ω and an inductive reactance of 17 Ω The air conditioner is powered by a 65.0 Hz generator with an rms voltage of 200 V A) Find the impedance of the air conditioner. Ω B) Find the rms current. A C) Find the average power consumed by the air conditioner. W
Nicholas M.

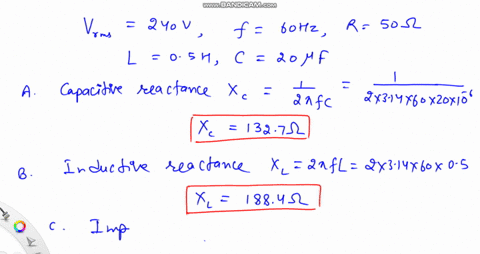

A 240 V (RMS), 60 Hz voltage source is applied to a series LCR circuit consisting of a 50-ohm resistor, 0.5 H inductor, and a 20 µF capacitor. Find the capacitive reactance of the circuit. Find the inductive reactance of the circuit. Find the impedance of the circuit. Find the phase angle for the circuit. Find the RMS current in the circuit. Find the average power consumed in this circuit. If the inductance could be changed to maximize the current through the circuit, what would the new inductance L' be? How much RMS current would flow in that case?
