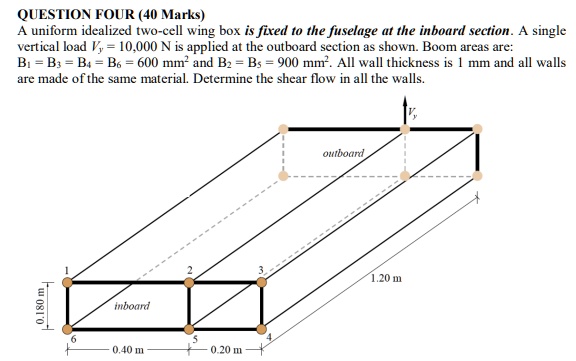

QUESTION FOUR (40 Marks) A uniform idealized two-cell wing box is fixed to the fuselage at the inboard section. A single vertical load $V_y = 10,000$ N is applied at the outboard section as shown. Boom areas are: $B_1 = B_3 = B_4 = B_6 = 600$ mm$^2$ and $B_2 = B_5 = 900$ mm$^2$. All wall thickness is 1 mm and all walls are made of the same material. Determine the shear flow in all the walls.
