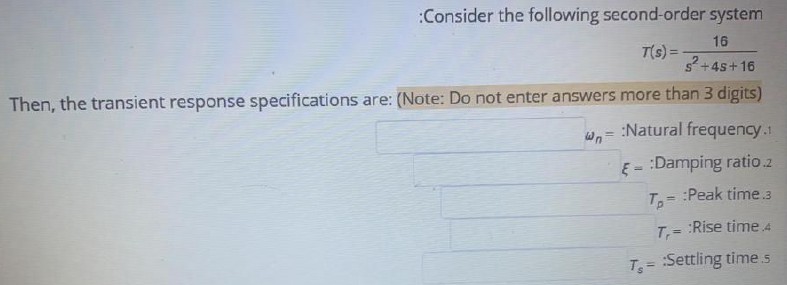

Consider the following second-order system T(s) = 16 / (s^2 + 4s + 16) Then, the transient response specifications are: (Note: Do not enter answers more than 3 digits) ?n = :Natural frequency.1 ? = :Damping ratio.2 Tp = :Peak time.3 Tr = :Rise time.4 Ts = :Settling time.5
Added by Yt R.
Close
Step 1
Step 1: Write the standard form of the second order system: \[ T(s) = \frac{k \omega_n^2}{s^2 + 2 \zeta \omega_n s + \omega_n^2} \] Show more…
Show all steps
Your feedback will help us improve your experience
Hemraj Kumawat and 64 other Differential Equations educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
question in the picture
Hemraj K.
The transfer function of the control system is given by T(S) = C(S)/R(S) = 32/(4s^2 + 12s + 256) a. Find the natural frequency (ωn) and damping ratio (ζ). b. Calculate the peak time (Tp) and settling time (Ts). c. Determine the value of percent overshoot (%OS). d. Calculate the rise time (Tr). e. Based on the value of damping ratio (ζ), the system is: a) Overdamped c) underdamped b) Critically damped d) undamped
Sri K.
Recommended Textbooks
Differential Equations and Linear Algebra
Fundamentals of Differential Equations
A First Course in Differential Equations with Modeling Applications
