Question No.16: (a) A cantilever shaft 50mm diameter and 300mm long has a disc of mass 100kg at its free end. The young's modulus for the shaft material is 200GN/m². Determine the frequency of longitudinal and transverse vibration of the shaft. (b)Explain the sketches different cases of damped vibrations.
Added by Paula S.
Close
Step 1
The area moment of inertia (I) is given by the formula: I = (π/64) * d^4 where d is the diameter of the shaft. Given that the diameter of the shaft is 50mm, we can substitute this value into the formula to calculate the area moment of inertia. I = (π/64) * Show more…
Show all steps
Your feedback will help us improve your experience
Kratika Bhadauria and 56 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

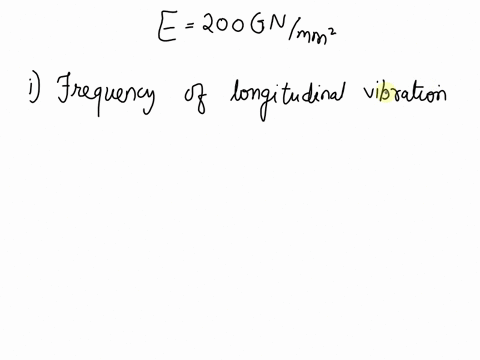

A cantilever shaft with a diameter of 50mm and a length of 300mm has a disc of mass 100kg at its free end. The Young's modulus for the shaft material is 200GN/mm^2. Determine the frequency of longitudinal and transverse vibrations of the shaft.
