Question Seven – 12 Marks a) In a simple pipe (fig 5), a ray of light must be transmitted, with minimum loss, along a core. List three major conditions, for this to be possible. [3 Marks] axis 0° external medium $n_3$ incident light cladding $n_2$ core $n_1$ fig 5 b) The diagram shows a ray light, entering the surface of oil at an unknown angle of incidence $\theta_0$. The light passes through the oil, strikes and enters the glass and is just totally internally reflected at the glass/air boundary. i. Calculate the critical angle at the glass/air boundary. [2 Marks] ii. Hence determine the path the light takes, as it passes through the different media. Calculate the angles of incident and refraction at each surface. [7 Marks] $n_{glass} = 1.65$ $65^\circ$ air air $\theta_c$ $n_{oil} = 1.45$ Incident ray

          Question Seven – 12 Marks
a) In a simple pipe (fig 5), a ray of light must be transmitted, with minimum loss, along a core. List three major conditions, for this to be possible. [3 Marks]
axis
0°
external medium $n_3$
incident light
cladding $n_2$
core $n_1$
fig 5
b) The diagram shows a ray light, entering the surface of oil at an unknown angle of incidence $\theta_0$. The light passes through the oil, strikes and enters the glass and is just totally internally reflected at the glass/air boundary.
i. Calculate the critical angle at the glass/air boundary. [2 Marks]
ii. Hence determine the path the light takes, as it passes through the different media. Calculate the angles of incident and refraction at each surface. [7 Marks]
$n_{glass} = 1.65$
$65^\circ$
air
air
$\theta_c$
$n_{oil} = 1.45$
Incident ray

Show more…

question seven 12 marks a in a simple pipe fig 5 a ray of light must be transmitted with minimum loss along a core list three major conditions for this to be possible 3 marks axis 0 external 97961

Added by Mackenzie N.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Vishal Gupta

03/18/2022

Step 1

It can be calculated using Snell's Law: $n_1 \sin \theta_1 = n_2 \sin \theta_2$. In this case, $n_1$ is the refractive index of glass ($n_{glass} = 1.65$), $n_2$ is the refractive index of air ($n_{air} = 1$), $\theta_1 = \theta_c$, and $\theta_2 = 90^\circ$. Show more…

Show all steps

lock

Thanks for your feedback!

Question Seven – 12 Marks a) In a simple pipe (fig 5), a ray of light must be transmitted, with minimum loss, along a core. List three major conditions, for this to be possible. [3 Marks] axis 0° external medium $n_3$ incident light cladding $n_2$ core $n_1$ fig 5 b) The diagram shows a ray light, entering the surface of oil at an unknown angle of incidence $\theta_0$. The light passes through the oil, strikes and enters the glass and is just totally internally reflected at the glass/air boundary. i. Calculate the critical angle at the glass/air boundary. [2 Marks] ii. Hence determine the path the light takes, as it passes through the different media. Calculate the angles of incident and refraction at each surface. [7 Marks] $n_{glass} = 1.65$ $65^\circ$ air air $\theta_c$ $n_{oil} = 1.45$ Incident ray

Play audio

Feedback

Powered by NumerAI

Vishal Gupta and 89 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

0:00 Hi.

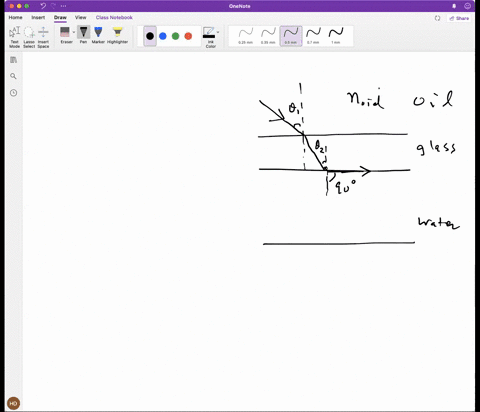

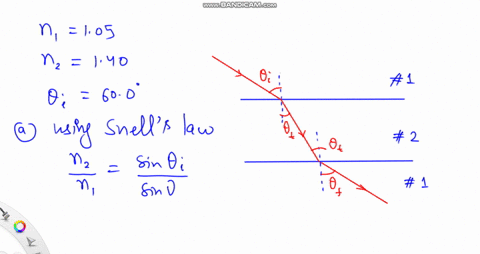

00:02 Here in this given problem, first of all there is a boundary separating medium number 1 from medium number 2.
