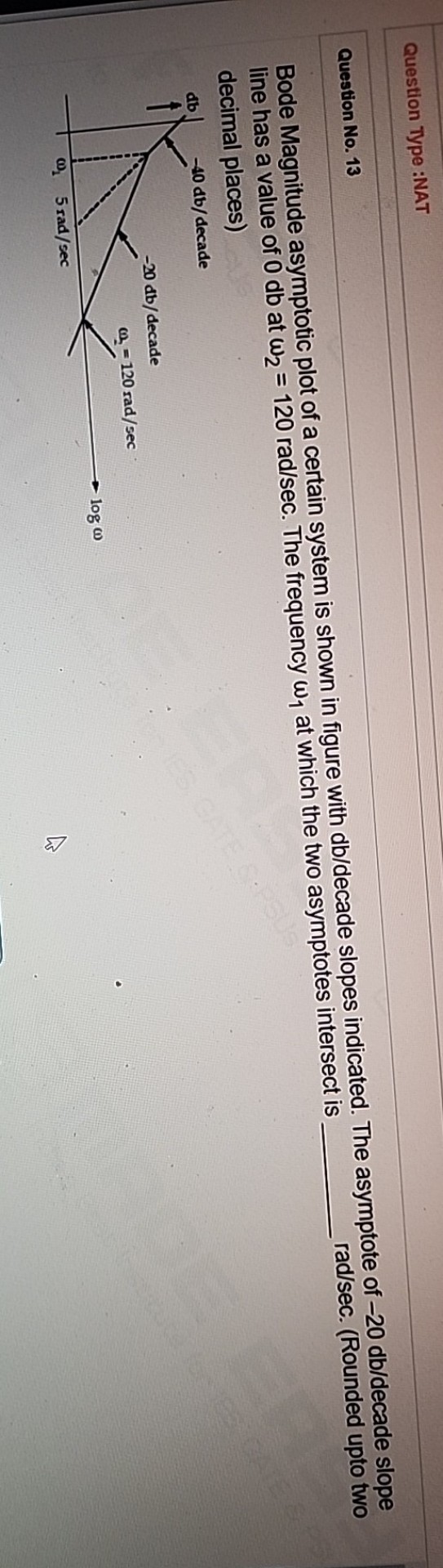

Question Type :NAT Question No. 13 Bode Magnitude asymptotic plot of a certain system is shown in figure with db/decade slopes indicated. The asymptote of -20 db/decade slope line has a value of 0 dB at ?2 = 120 rad/sec. The frequency ?1 at which the two asymptotes intersect is ______ rad/sec. (Rounded upto two decimal places)

          Question Type :NAT

Question No. 13
Bode Magnitude asymptotic plot of a certain system is shown in figure with db/decade slopes indicated. The asymptote of -20 db/decade slope line has a value of 0 dB at ?2 = 120 rad/sec. The frequency ?1 at which the two asymptotes intersect is ______ rad/sec. (Rounded upto two decimal places)

Question Type :NAT

Question No. 13
Bode Magnitude asymptotic plot of a certain system is shown in figure with db/decade slopes indicated. The asymptote of -20 db/decade slope line has a value of 0 dB at ?2 = 120 rad/sec. The frequency ?1 at which the two asymptotes intersect is rad/sec. (Rounded upto two decimal places)

Added by Tanaaz K.

Elementary and Intermediate Algebra

Alan S. Tussy, R. David Gustafson 5th Edition

Instant Answer

Solved by Expert Khushbu Rani

01/26/2025

Step 1

We are given a Bode magnitude asymptotic plot with a slope of \(-20 \, \text{dB/decade}\) that intersects the 0 dB line at \(\omega_2 = 120 \, \text{rad/sec}\). We need to find the frequency \(\omega_1\) where this slope intersects with another asymptote. Show more…
