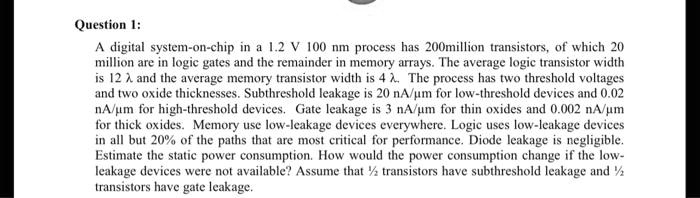

Question 1: A digital system-on-chip in a 1.2 V 100 nm process has 200million transistors, of which 20 million are in logic gates and the remainder in memory arrays. The average logic transistor width is 12 ? and the average memory transistor width is 4 ?. The process has two threshold voltages and two oxide thicknesses. Subthreshold leakage is 20 nA/µm for low-threshold devices and 0.02 nA/µm for high-threshold devices. Gate leakage is 3 nA/µm for thin oxides and 0.002 nA/µm for thick oxides. Memory use low-leakage devices everywhere. Logic uses low-leakage devices in all but 20% of the paths that are most critical for performance. Diode leakage is negligible. Estimate the static power consumption. How would the power consumption change if the low- leakage devices were not available? Assume that ½ transistors have subthreshold leakage and ½ transistors have gate leakage.
Added by Rachel J.
Close
Step 1
- Total transistors = 200 million - Transistors in logic gates = 20 million - Transistors in memory arrays = 200 million - 20 million = 180 million Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 73 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
3. Consider a process in which pMOS transistors have two (2) times the effective resistance of nMOS transistors for a unit inverter with equal rising and falling delays as depicted in Figure 1. Figure 1: A unit inverter (a) Describe logical effort and explain why NAND gates are preferred to realize combinational circuits rather than NOR gates. (5 Marks) (b) The 90 nm long transistor has a gate oxide thickness of 16 . Calculate the gate capacitance per micron of width where the permittivity of oxide is 3.9 times greater than the permittivity of free space. Assume that the permittivity of free space is ε0 = 08.85 × 10-14 F/cm. (5 Marks) (c) Sketch a transistor-level schematic of a 3-input NOR gate including its transistor widths. Determine the input capacitance of the gate. (5 Marks) (d) Calculate the logical efforts of the 3-input NOR gate based on the unit inverter. (5 Marks) (e) Calculate based on the Figure 2, the propagation delay tpd of a fanout-of-2 3-input NOR gate in ps, assuming τ = 3ps. Figure 2: 3-input NOR gate (5 Marks)
Adi S.
An electronics company produces transistors, resistors, and computer chips. Each transistor requires 1 unit of copper and 2 units of zinc. Each resistor requires 1 unit of copper, 1 unit of zinc, and 1 unit of glass. Each computer chip requires 2 units of copper, 2 units of zinc, and 2 units of glass. Table QI below summarizes the information in table form: Table
Sri K.
