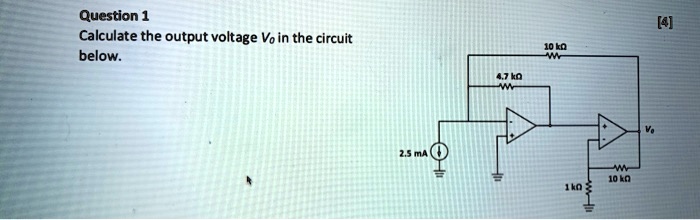

Question 1 Calculate the output voltage Vo in the circuit below.
Added by Catherine A.
Close
Step 1
The resistors R1 and R2 are in series, so we can add their resistances together: R1 + R2 = 10 kΩ + 4.7 kΩ = 14.7 kΩ Now, let's calculate the total resistance when R1, R2, and R3 are in parallel. The formula for calculating the total resistance in parallel is: Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 66 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In the circuit given below, I = 3 A. Find the output voltage vo(t). t = 0 10 ̐̐̐̐̐ 10 ̐̐̐̐̐ 5 ̐̐̐̐̐ 1 H 10 mF vo The output voltage is vo(t) = [A + Bt]est V, where A = , B = , and s = .
Madhur L.
Calculate the output voltage for the circuit of Fig. 50 with inputs of V1 = 40 mV rms and V2 = 20 mV rms.
