          Question#1:

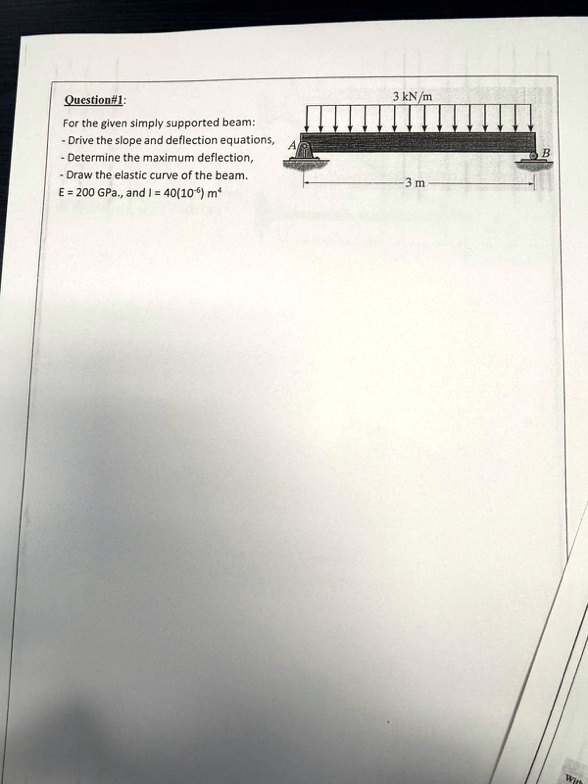

For the given simply supported beam:
- Drive the slope and deflection equations,
- Determine the maximum deflection,
- Draw the elastic curve of the beam.
E = 200 GPa., and I = 40(10$^{-6}$) m$^2$
3 kN/m
A
B
3 m
