Question2: Design a first order active low pass filter with a gain of 6dB in the passband and a cut off frequency of 1kHz. Round off to components that are actually available in your set. Use resistors with values bigger than 1kOhm to limit the current.

          Question2: Design a first order active low pass filter with a gain of 6dB in the passband and a
cut off frequency of 1kHz. Round off to components that are actually available in your set.
Use resistors with values bigger than 1kOhm to limit the current.

Question2: Design a first order active low pass filter with a gain of 6dB in the passband and a
cut off frequency of 1kHz. Round off to components that are actually available in your set.
Use resistors with values bigger than 1kOhm to limit the current.

Added by Rebecca D.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

12/09/2023

Step 1

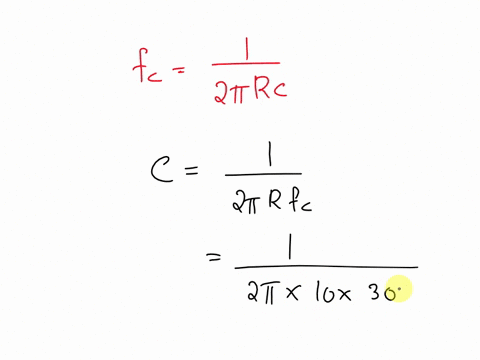

Given that the cutoff frequency is 1kHz, we can calculate the value of the capacitor (C1) using the formula: fc = 1 / (2 * π * R1 * C1) 1kHz = 1 / (2 * π * R1 * C1) C1 = 1 / (2 * π * R1 * 1000) Show more…
