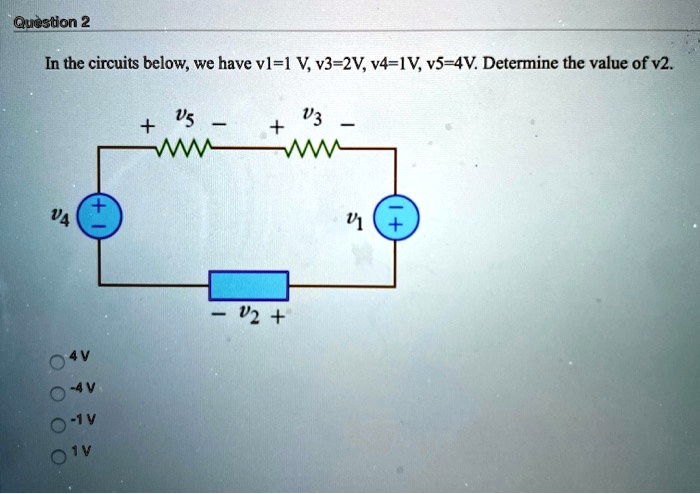

In the circuits below, we have v1=1 V, v3=2V, v4=1V, v5=4V. Determine the value of v2. 4 V -4 V -1 V 1 V
Added by Jose Ignacio W.
Close
Step 1
We have v1 = 1 V and v3 = 2 V. Since v2 is connected to the junction of v1 and v3, we can use the voltage divider rule to find the voltage at v2. The voltage divider rule states that the voltage across a resistor in a series circuit is proportional to the Show more…
Show all steps
