QUESTION 4 I. Draw a labelled schematic diagram of a current source inverter. Also, make a waveform of the current supplied to the motor. II. Differentiate between direct and indirect vector control of induction motor drives.
Added by Ana B.
Close
Your feedback will help us improve your experience
Adi S and 68 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

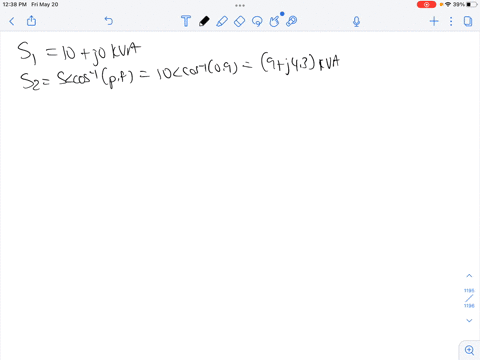

'A source supplies power to the following three loads connected in parallel: (1) a lighting load drawing 10 kW, (2) an induction motor drawing 10 kVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading hp =0.746 kW): Determine the real, reactive, and apparent power delivered by the source: Also, draw the source power triangle.'
Penny R.

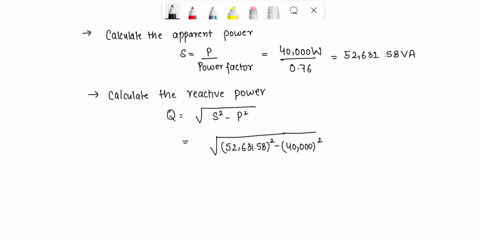

A 40kW induction motor with a lagging power factor of 0.76 is supplied by a 120Vrms 60Hz sinusoidal voltage source. find the capacitance needed in parallel with the motor to raise the power factor to (a) 0.9 lagging and (b) 1.0
