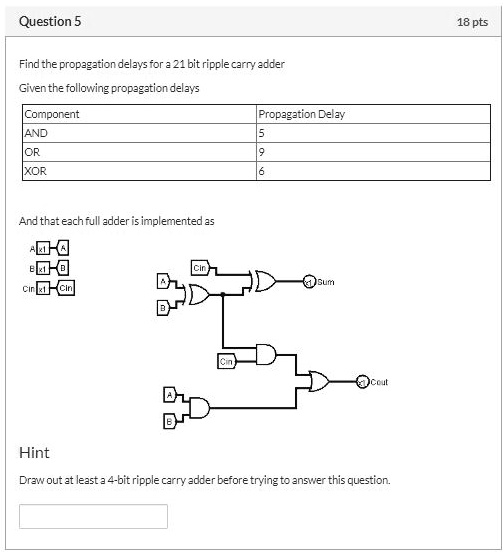

Find the propagation delays for a 21 bit ripple carry adder Given the following propagation delays Component | Propagation Delay AND | 5 OR | 9 XOR | 6 And that each full adder is implemented as Hint Draw out at least a 4-bit ripple carry adder before trying to answer this question.
Added by Monique M.
Close
Step 1
A full adder is a digital circuit that performs the addition of three bits: two regular binary bits and a carry bit (from the previous less significant bit). It has two outputs: a sum bit and a carry bit (for the next more significant bit). The full adder can be Show more…
