Question 5 [p2s19q9] In the mesh circuit, the power absorbed by the 4 ohm resistor is most nearly 12? 4? $i_1$ 5V $i_2$ 5? 7? 250 mW
Added by Silvia L.
Close
Step 1
To find the power absorbed by the 4 ohm resistor, we need to first find the current flowing through it. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 66 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The power (W) dissipated in the 90-ohm resistor of the circuit shown below is most nearly:
Sri K.

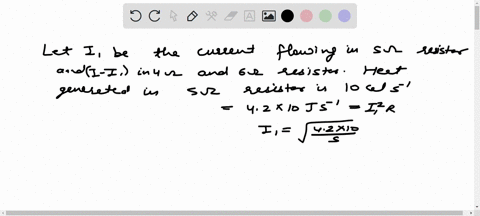

In the circuit shown in Fig. $7.41$ the heat produced in the $5 \Omega$ resistor due to the current flowing through it is $10 \mathrm{cal} \mathrm{s}^{-1}$. The heat generated in the $4 \Omega$ resistor isa. $1 \mathrm{cal} \mathrm{s}^{-1}$ h $2 \mathrm{cals}^{-1}$ c. $3 \mathrm{cals}^{-1}$ d $4 \mathrm{cals}^{-1}$
