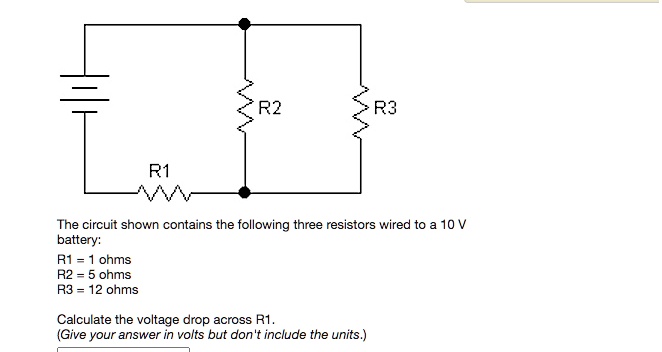

R1 R2 R3 The circuit shown contains the following three resistors wired to a 10 V battery: R1 = 1 ohms R2 = 5 ohms R3 = 12 ohms Calculate the voltage drop across R1. (Give your answer in volts but don't include the units.)
Added by Timothy S.
Close
Step 1
Given R2 = 12 ohms and R3 = 12 ohms. Using the formula for resistors in parallel: 1/Req = 1/R2 + 1/R3 1/Req = 1/12 + 1/12 1/Req = 2/12 Req = 12/2 Req = 6 ohms Show more…
Show all steps
