What is Et? 3.2 V 320 V 20 V 230 V P1 = 16 W R1 = 25 R3 = 150 R2 = 100 R4 = 150 R6 = 400 R5 = 200 R8 = 100 R7 = 200
Added by April R.
Close
Step 1

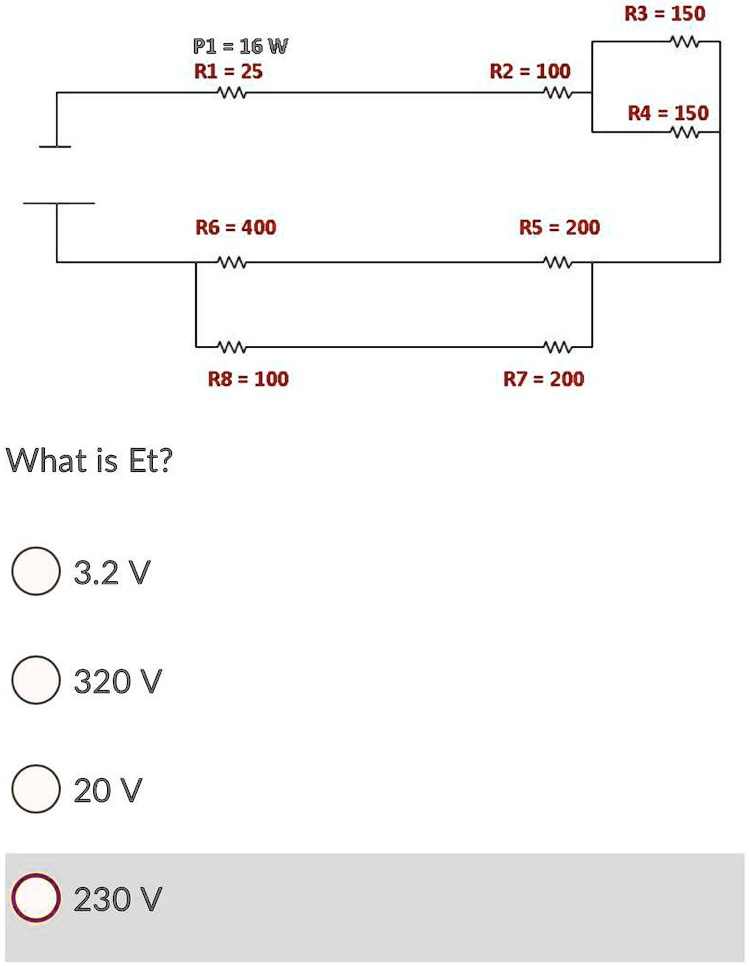

In the image, we see a combination of series and parallel connections. R1 is in series with the parallel combination of R2, R3, and R4. R5 is in parallel with the series combination of R6, R7, and R8. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 74 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
V_T = 160 V I_T = R_T = V1 = 160 V I1 = R1 = 1200 Ω V2 = I2 = R2 = 300 Ω V3 = I3 = 1.33 A R3 =
Madhur L.

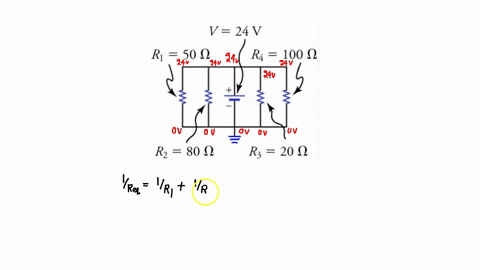

V = 24 V R1 = 50 Ω R4 = 100 Ω R2 = 80 Ω R3 = 20 Ω
Sahil K.
Four resistors R1, R2, R3, and R4 are connected in series with a 100-V source. If R1 = 200 Ω, R3 = 300 Ω, R4 = 400 Ω, and V2 = 10 V, find the value of R2.
