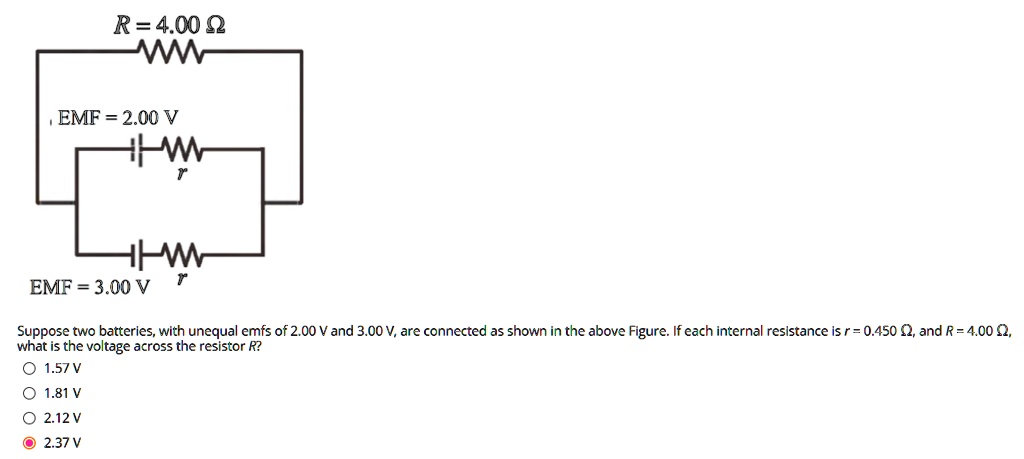

R = 4.00 ? EMF = 2.00 V r EMF = 3.00 V r Suppose two batteries, with unequal emfs of 2.00 V and 3.00 V, are connected as shown in the above Figure. If each internal resistance is r = 0.450 ?, and R = 4.00 ?, what is the voltage across the resistor R? 1.57 V 1.81 V 2.12 V 2.37 V

          R = 4.00 ?
EMF = 2.00 V
r
EMF = 3.00 V
r
Suppose two batteries, with unequal emfs of 2.00 V and 3.00 V, are connected as shown in the above Figure. If each internal resistance is r = 0.450 ?, and R = 4.00 ?,
what is the voltage across the resistor R?
1.57 V
1.81 V
2.12 V
2.37 V

R = 4.00 ?
EMF = 2.00 V
r
EMF = 3.00 V
r
Suppose two batteries, with unequal emfs of 2.00 V and 3.00 V, are connected as shown in the above Figure. If each internal resistance is r = 0.450 ?, and R = 4.00 ?,
what is the voltage across the resistor R?
1.57 V
1.81 V
2.12 V
2.37 V

Added by Sarah L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Darshan Maheshwari

04/12/2022

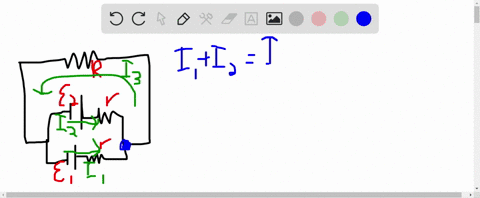

Step 1

** We have two batteries with EMFs of $2.00 \text{ V}$ and $3.00 \text{ V}$, respectively. Each battery has an internal resistance of $r = 0.450 \Omega$. The external resistor has a resistance of $R = 4.00 \Omega$. Show more…
