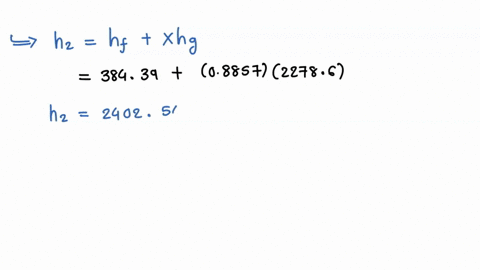

It consists of four main components: a boiler, a turbine, a condenser, and a pump. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

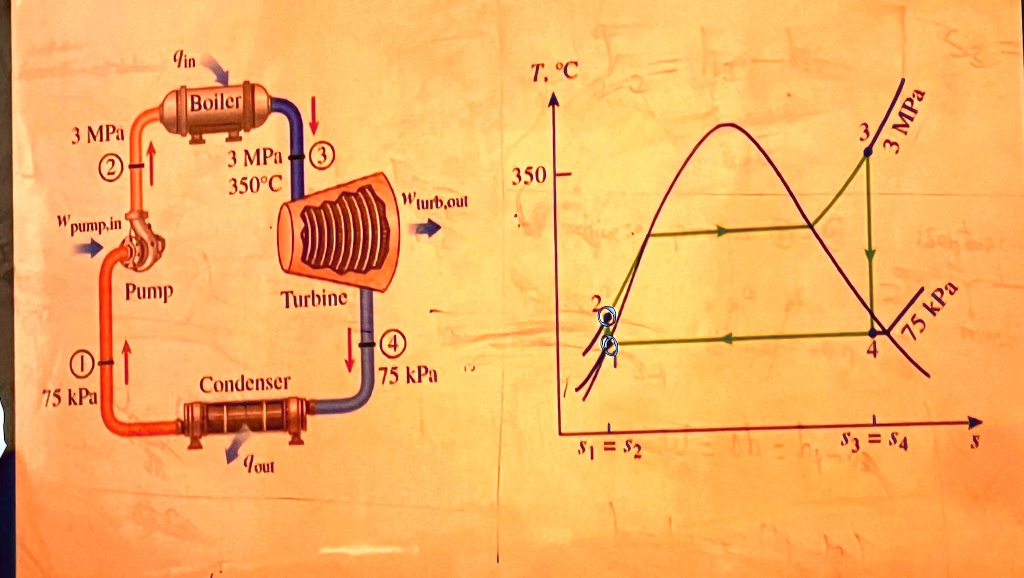

Consider a steam power plant operating on the simple ideal Rankine cycle. Steam enters the turbine at 3 MPa and 350°C and is condensed in the condenser at a pressure of 75 kPa. Determine the thermal efficiency of this cycle
Sri K.
Q1. A steam power plant operates on the ideal Rankine cycle. Steam enters the turbine at the following conditions: Pressure: 3 MPa Temperature: 350°C The steam further condenses in the condenser at 75 kPa pressure. Calculate the thermal efficiency of the cycle.

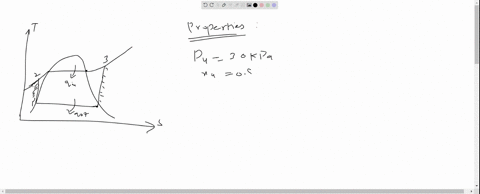

simple ideal Rankine cycle with water as the working fluid operates between the pressure limits of $3 \mathrm{MPa}$ in the boiler and $30 \mathrm{kPa}$ in the condenser. If the quality at the exit of the turbine cannot be less than 85 percent, what is the maximum thermal efficiency this cycle can have?
