Read the following scenario: Library Management System is library management software for the purpose of monitoring and controlling the transactions in a library. Library management system gives us the complete information about the library and the daily transactions done in a Library. We need to maintain the record of news and retrieve the details of books available in the library which mainly focuses on basic operations in a library like adding new member, new books, and up new information, searching books and members and facility to borrow and return books. It features a familiar and well thought-out, an attractive user interface, combined with strong searching, insertion and reporting capabilities. The report generation facility of library system helps to get a good idea of which are ths borrowed by the members, makes users possible to generate hard copy. The following are the brief description on the functions achieved through this case study: End-Users: i. Librarian: To maintain and update the records and also to cater the needs of the users. ii. Reader: Need books to read and also places various requests to the librarian. iii. Vendor: To provide and meet the requirement of the prescribed books. NOTE: You may come up with assumptions, insights and apply your experiences in your answer. (a) Produce use cases for the Library Management System. (12 marks) (b) Develop sequence diagram and communication diagram for searching a book and issuing it as per the request by the user from the librarian for Library Management System. (8 marks) (c) Construct the entity class diagram based on the Library Management System. Add attributes and operations to your class diagram. (10 marks)

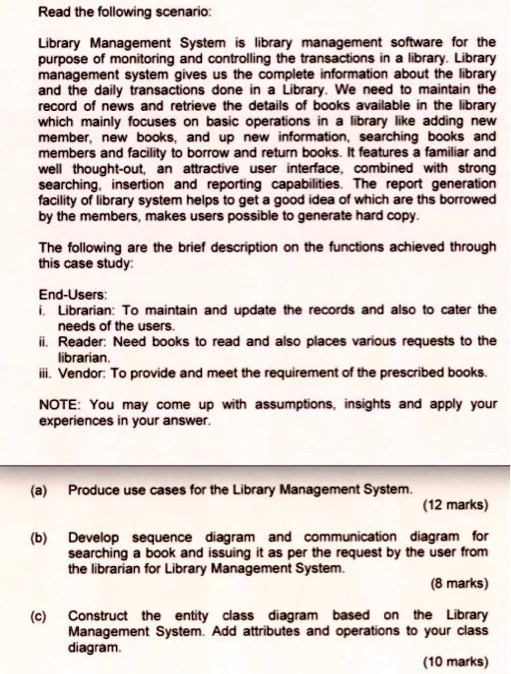

          Read the following scenario:
Library Management System is library management software for the
purpose of monitoring and controlling the transactions in a library. Library
management system gives us the complete information about the library
and the daily transactions done in a Library. We need to maintain the
record of news and retrieve the details of books available in the library
which mainly focuses on basic operations in a library like adding new
member, new books, and up new information, searching books and
members and facility to borrow and return books. It features a familiar and
well thought-out, an attractive user interface, combined with strong
searching, insertion and reporting capabilities. The report generation
facility of library system helps to get a good idea of which are ths borrowed
by the members, makes users possible to generate hard copy.
The following are the brief description on the functions achieved through
this case study:
End-Users:
i. Librarian: To maintain and update the records and also to cater the
needs of the users.
ii. Reader: Need books to read and also places various requests to the
librarian.
iii. Vendor: To provide and meet the requirement of the prescribed books.
NOTE: You may come up with assumptions, insights and apply your
experiences in your answer.
(a) Produce use cases for the Library Management System.  (12 marks)
(b) Develop sequence diagram and communication diagram for
searching a book and issuing it as per the request by the user from
the librarian for Library Management System.  (8 marks)
(c) Construct the entity class diagram based on the Library
Management System. Add attributes and operations to your class
diagram.  (10 marks)

Read the following scenario:
Library Management System is library management software for the
purpose of monitoring and controlling the transactions in a library. Library
management system gives us the complete information about the library
and the daily transactions done in a Library. We need to maintain the
record of news and retrieve the details of books available in the library
which mainly focuses on basic operations in a library like adding new
member, new books, and up new information, searching books and
members and facility to borrow and return books. It features a familiar and
well thought-out, an attractive user interface, combined with strong
searching, insertion and reporting capabilities. The report generation
facility of library system helps to get a good idea of which are ths borrowed
by the members, makes users possible to generate hard copy.
The following are the brief description on the functions achieved through
this case study:
End-Users:
i. Librarian: To maintain and update the records and also to cater the
needs of the users.
ii. Reader: Need books to read and also places various requests to the
librarian.
iii. Vendor: To provide and meet the requirement of the prescribed books.
NOTE: You may come up with assumptions, insights and apply your
experiences in your answer.
(a) Produce use cases for the Library Management System. (12 marks)
(b) Develop sequence diagram and communication diagram for
searching a book and issuing it as per the request by the user from
the librarian for Library Management System. (8 marks)
(c) Construct the entity class diagram based on the Library
Management System. Add attributes and operations to your class
diagram. (10 marks)
