Refer to the figure below to answer the following questions. 4 6 4 2 7 3 8 2 2 5 3 1 3 5 5 1 4 3 9 2 1 3 7 3 2 5 3 7 2 8 2 3 4 4 3 5 7 5 6 4 Figure 3 Consider the network diagram given in Figure 3 with the indicated flow capacities along each branch. What is the input-output constraint associated with the first node of the network diagram for the 0-1 integer linear programming formulation of the maximal flow problem? x12 + x13 + x14 - x91 = 0 x12 + x13 + x14 = 16 x12 + x13 + x14 = 1 x12 + x13 + x14 = 0
Added by Adrian B.
Close
Step 1
According to the flow conservation principle, the total flow entering a node must be equal to the total flow leaving the node. In other words, the sum of the flows entering the node must be equal to the sum of the flows leaving the node. In this case, the first Show moreā¦
Show all steps
Your feedback will help us improve your experience
Ameer Said and 75 other Intro Stats / AP Statistics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

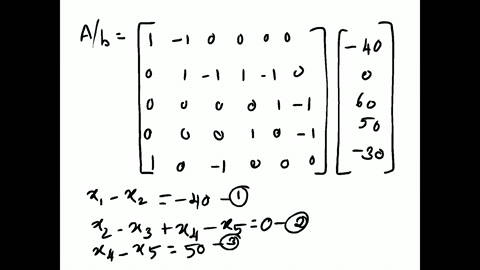

a. Find the general flow pattern of the network shown in the figure. b. Assuming that the flow must be in the directions indicated, find the minimum flows in the branches denoted by x2, x3, x4, and x5. a. Choose the correct answer below and fill in the answer boxes to complete your choice. A. x1 = x2 is free x3 is free x4 is free x5 is free x6 = B. x1 = x2 is free x3 = x4 is free x5 is free x6 = C. x1 is free x2 = x3 = x4 = x5 = x6 = D. x1 = x2 = x3 is free x4 = x5 = x6 is free
Adi S.
a. Find the general flow pattern of the network shown in the figure. b. Assuming that the flow must be in the directions indicated, find the minimum flows in the branches denoted by x2, x3, x4, and x5. a. Choose the correct answer below and fill in the answer boxes to complete your choice.
Sri K.
a. Find the general flow pattern in the network shown in the figure. b. Assuming that the flow must be in the directions indicated, find the minimum flows in the branches denoted by $x_{2}, x_{3}, x_{4},$ and $x_{5} .$ figure can't copy
