Referring to figure 1, determine the mass and angular location of the balancing mass if it is located at a radius of 50 mm. Figure 1: Problem 15-1 y m1=2kg 25mm 15 deg x Z B 35mm 75 deg m2=1.5kg 40mm m3=3kg y 800mm 200mm m2 m1 m3
Added by Craig W.
Close
Step 1
From Figure 1, we can see that there are three masses: m1, m2, and m3. m1 = 2 kg m2 = 1.5 kg m3 = 3 kg To determine the mass and angular location of the balancing mass, we need to consider the moments of the masses about point B. The moment of a mass about a Show more…
Show all steps
Your feedback will help us improve your experience
Sonu L and 87 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Four masses, 150 kg, 250 kg, 200 kg, and 300 kg, are rotating in the same plane at radii of 0.25 m, 0.2 m, 0.3 m, and 0.35 m, respectively. Their angular locations are 40°, 120°, and 250° from mass 150 kg, respectively, measured in the counterclockwise direction. Determine the position and magnitude of the balance mass required if its radius of rotation is 0.25 m.
Kratika B.

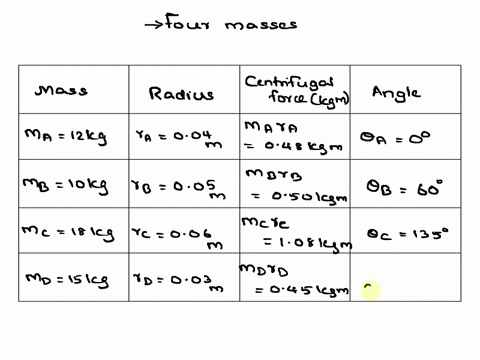

Four masses A, B, C and D are attached to a shaft and revolve in the same plane. The masses are 12 kg, 10 kg, 18 kg and 15 kg respectively and their radii of rotations are 40 mm, 50 mm, 60 mm and 30 mm. The angular position of the masses B, C and D are 60°, 135° and 270° from the mass A. Find the magnitude and position of the balancing mass at a radius of 100 mm.
Madhur L.

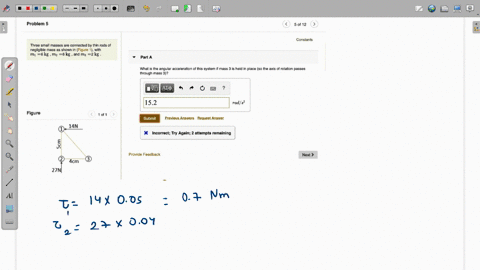

Three small masses are connected by thin rods of negligible mass as shown in Figure 1, with m1 = 6 kg, m2 = 6 kg, and m3 = 2 kg. Part A What is the angular acceleration of this system if mass 3 is held in place (so the axis of rotation passes through mass 3)? 15.2 rad/s^2
Darshan M.
