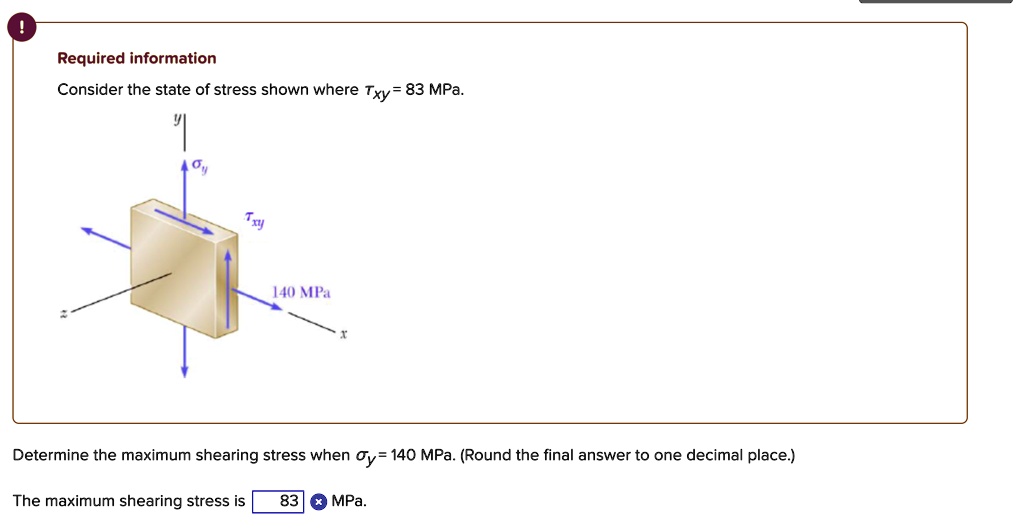

Required information Consider the state of stress shown where ?xy = 83 MPa. y ?y ?xy 140 MPa x z Determine the maximum shearing stress when ?y = 140 MPa. (Round the final answer to one decimal place.) The maximum shearing stress is 83 MPa.

          Required information
Consider the state of stress shown where ?xy = 83 MPa.
y
?y
?xy
140 MPa
x
z
Determine the maximum shearing stress when ?y = 140 MPa. (Round the final answer to one decimal place.)
The maximum shearing stress is 83 MPa.

Required information
Consider the state of stress shown where ?xy = 83 MPa.
y
?y
?xy
140 MPa
x
z
Determine the maximum shearing stress when ?y = 140 MPa. (Round the final answer to one decimal place.)
The maximum shearing stress is 83 MPa.

Added by Felix H.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

01/05/2023

Step 1

Step 1: Identify the stress components from the figure: σx = 0 MPa (no normal stress shown in x), σy = 140 MPa, τxy = 83 MPa. Show more…
