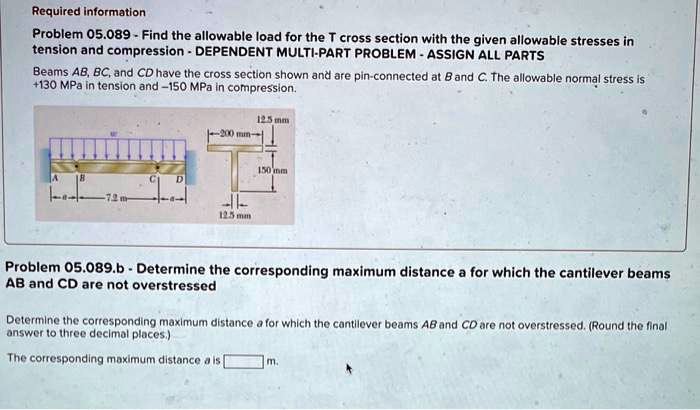

Required information Problem 05.089 - Find the allowable load for the T cross section with the given allowable stresses in tension and compression - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS Beams AB, BC, and CD have the cross section shown and are pin-connected at B and C. The allowable normal stress is +130 MPa in tension and -150 MPa in compression. Problem 05.089.b - Determine the corresponding maximum distance a for which the cantilever beams AB and CD are not overstressed Determine the corresponding maximum distance a for which the cantilever beams AB and CD are not overstressed. (Round the final answer to three decimal places.) The corresponding maximum distance a is [ ] m.
Added by Scott T.
Close
Step 1
The moment at the fixed end of a cantilever beam loaded at the free end is given by: M = P*a where: - P is the load, - a is the distance from the fixed end to the point where the load is applied. Substituting M into the stress formula, we get: Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 79 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Sri K.
A cantilever beam $A B,$ loaded by a uniform load and a concentrated load (see figure), is constructed of a channel section. (a) Find the maximum tensile stress $\sigma_{t}$ and maximum compressive stress $\sigma_{c}$ if the cross section has the dimensions indicated and the moment of inertia about the $z$ axis (the neutral axis) is $I=3.36 \mathrm{in}^{4} .$ Note: The uniform load represents the weight of the beam. (b) Find the maximum value of the concentrated load if the maximum tensile stress cannot exceed $4 \mathrm{ksi}$ and the maximum compressive stress is limited to 14.5 ksi. (c) How far from $A$ can load $P=250$ lb be positioned if the maximum tensile stress cannot exceed 4 ksi and the maximum compressive stress is limited to 14.5 ksi?
Stresses in Beams (Basic Topics)
Normal Stress in Beams (Linearly Elastic Materials)
A beam of T-section is supported and loaded as shown in the figure. The cross section has width $b=65 \mathrm{mm}$ height $h=75 \mathrm{mm},$ and thickness $t=13 \mathrm{mm}$ (a) Determine the maximum tensile and compressive stresses in the beam. (b) If the allowable stresses in tension and compression are $124 \mathrm{MPa}$ and $82 \mathrm{MPa}$, respectively, what is the required depth $h$ of the beam? Assume that thickness $t$ remains at $13 \mathrm{mm}$ and that flange width $b=65 \mathrm{mm}$ (c) Find the new values of loads $P$ and $q$ so that allowable tension (124 MPa) and compression (82 MPa) stresses are reached simultaneously for the beam. Use the beam cross section in part (a) (see figure) and assume that $L_{1}, L_{2}$ and $L_{3}$ are unchanged.
