Question

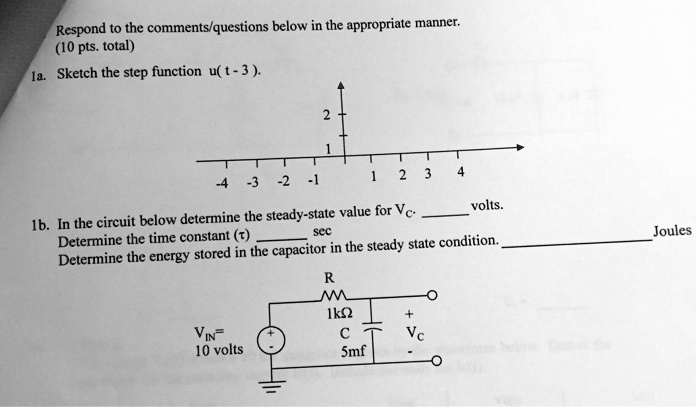

Respond to the comments/questions below in the appropriate manner. (10 pts. total) 1a. Sketch the step function $u(t - 3)$. 2 1 -4 -3 -2 -1 1 2 3 4 1b. In the circuit below determine the steady-state value for $V_c$. volts. Determine the time constant ($\tau$) sec Determine the energy stored in the capacitor in the steady state condition. Joules R 1k$\Omega$ + $V_c$ $V_{IN} = 10$ volts C 5mf

          Respond to the comments/questions below in the appropriate manner.
(10 pts. total)
1a. Sketch the step function $u(t - 3)$.
2
1
-4 -3 -2 -1 1 2 3 4
1b. In the circuit below determine the steady-state value for $V_c$. ____ volts.
Determine the time constant ($\tau$) ____ sec
Determine the energy stored in the capacitor in the steady state condition. ____ Joules
R
1k$\Omega$
+ $V_c$
$V_{IN} = 10$ volts
C
5mf

Respond to the comments/questions below in the appropriate manner.
(10 pts. total)
1a. Sketch the step function u(t - 3).
2
1
-4 -3 -2 -1 1 2 3 4
1b. In the circuit below determine the steady-state value for Vc. volts.
Determine the time constant (τ) sec
Determine the energy stored in the capacitor in the steady state condition. Joules
R
1kΩ
+ Vc
VIN = 10 volts
C
5mf

Added by Matthew T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Vivek K

Step 1

To sketch the step function u(t-3) volts, we need to understand what this function represents. The step function u(t-3) represents a voltage that is zero for t < 3 and becomes 1 for t ≥ 3. So, the sketch of the step function u(t-3) volts would be a horizontal Show more…

Show all steps

Thanks for your feedback!

1a. Sketch the step function u(t-3) volts. 1b. In the circuit below, determine the steady-state value for Vc. Determine the time constant (Ï„) in seconds. Determine the energy stored in the capacitor in the steady-state condition. R = 1.2kÎ©, VIN = 10 volts, C = 5Î¼F.
