Learning Goal: The not-to-scale truss shown in Figure 1 with dimension a = 1.8 m is subjected to forces P = 20 kN and P2 = 39 kN. Solve Parts A through C below. To analyze trusses using the method of joints: - For a truss to be in equilibrium, each of its joints must also be in equilibrium. - Trusses consist of pin connections, so equilibrium conditions F = 0 and F = 0 must be satisfied at each joint. - Because coplanar and concurrent forces act at each joint, moment equations are not needed when evaluating forces at a joint. - Analysis should start at a joint having at least one known force and at most two unknown forces. - When drawing a free-body diagram of a joint, always assume unknown member forces are in tension. By doing so, the numerical solution of the equilibrium equations will yield positive scalars for members in tension and negative scalars for members in compression. Part A - Reaction forces: Determine the magnitude of the reaction forces Ar, Ay, and Dy at each support. Express your answers in kN to three significant figures separated by commas. View Available Hint(s) Figure 1 of 1 Submit Part B - Complete previous part(s) Part C - Complete previous part(s) Provide Feedback

          Learning Goal:

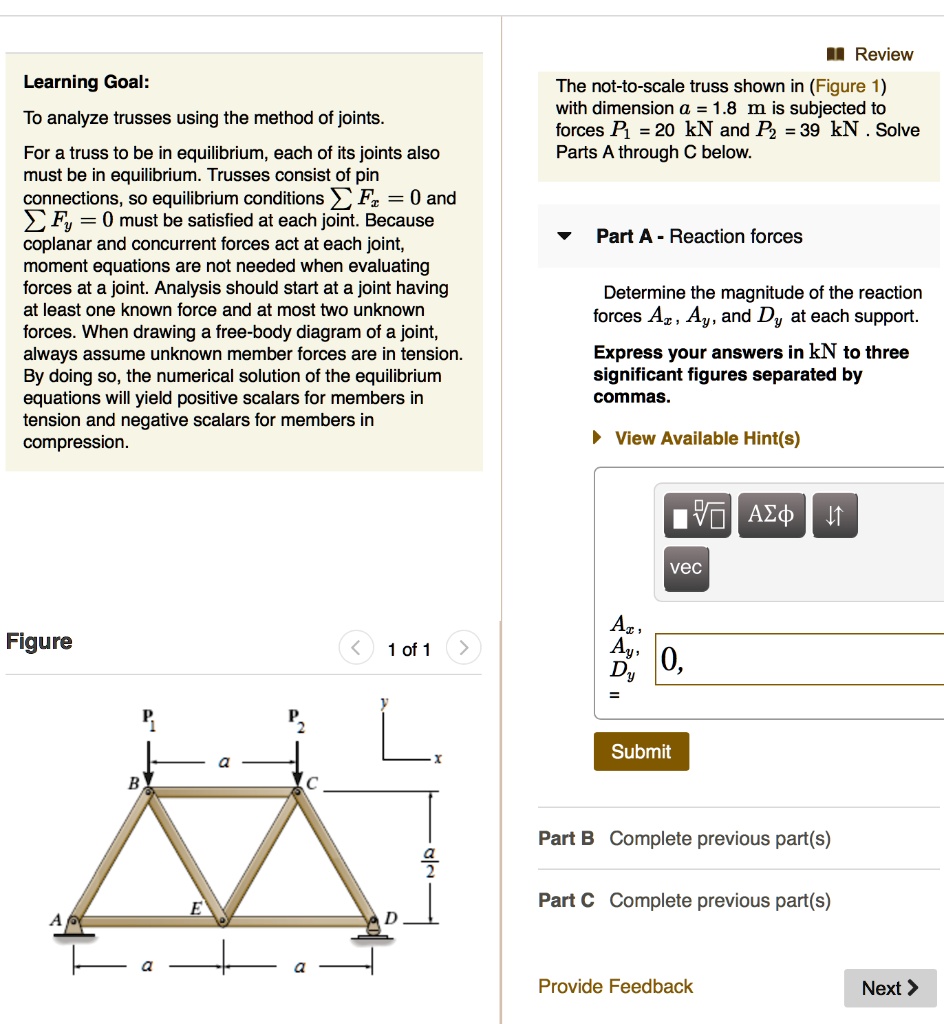

The not-to-scale truss shown in Figure 1 with dimension a = 1.8 m is subjected to forces P = 20 kN and P2 = 39 kN. Solve Parts A through C below.

To analyze trusses using the method of joints:
- For a truss to be in equilibrium, each of its joints must also be in equilibrium.
- Trusses consist of pin connections, so equilibrium conditions F = 0 and F = 0 must be satisfied at each joint.
- Because coplanar and concurrent forces act at each joint, moment equations are not needed when evaluating forces at a joint.
- Analysis should start at a joint having at least one known force and at most two unknown forces.
- When drawing a free-body diagram of a joint, always assume unknown member forces are in tension. By doing so, the numerical solution of the equilibrium equations will yield positive scalars for members in tension and negative scalars for members in compression.

Part A - Reaction forces:
Determine the magnitude of the reaction forces Ar, Ay, and Dy at each support.
Express your answers in kN to three significant figures separated by commas.

View Available Hint(s)

Figure 1 of 1

Submit

Part B - Complete previous part(s)

Part C - Complete previous part(s)
