Question

A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to the plate. (See the figure below (Figure 1).) Part A Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F1 = 18.0 N, F2 = 29.0 N, and F3 = 14.0 N. The plate and all forces are in the plane of the page.

          A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to the plate. (See the figure below (Figure 1).)

Part A
Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F1 = 18.0 N, F2 = 29.0 N, and F3 = 14.0 N. The plate and all forces are in the plane of the page.

A square metal plate 0.180 m on each side is pivoted about an axis through point O at its center and perpendicular to the plate. (See the figure below (Figure 1).)

Part A
Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are F1 = 18.0 N, F2 = 29.0 N, and F3 = 14.0 N. The plate and all forces are in the plane of the page.

Added by Concepci-N B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Mary Jo Othon

03/05/2020

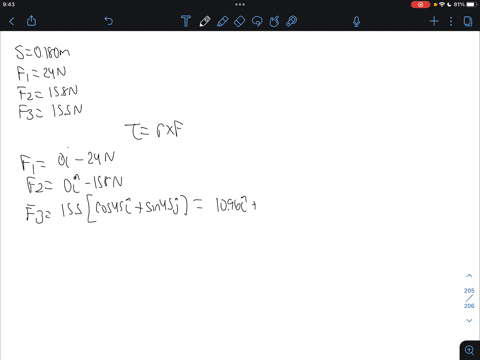

Step 1

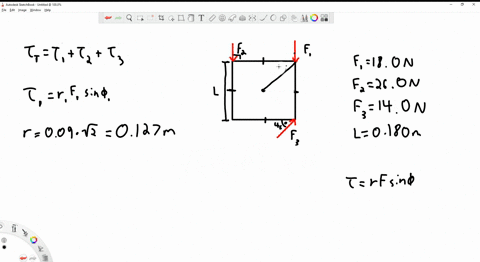

180 m, we can calculate the distance from point O to point A using the formula for the diagonal of a square: \(AC = \sqrt{2} \times \frac{0.180}{2} = \frac{0.180}{\sqrt{2}}\) Show more…
