Question

Rigid bar BFCD is pinned at C and supported by steel bar AB at B and aluminum bar DE at D. A concentrated load P is applied to the rigid bar at F. Compute the Load P when the downward deflection at F (?=0.6 mm.) 3m A P DE aluminum bar A=900 mm² D E E= 70 GPa 1.5m B FV Rigid bar C ?=0.6 mm 3m AB steel bar A= 650 mm² E= 200 GPa

          Rigid bar BFCD is pinned at C and supported by steel bar AB at B and aluminum bar DE at D. A concentrated load P is applied to the rigid bar at F. Compute the Load P when the downward deflection at F (?=0.6 mm.)
3m
A
P
DE aluminum bar
A=900 mm²
D
E
E= 70 GPa
1.5m
B
FV Rigid bar
C
?=0.6 mm
3m
AB steel bar
A= 650 mm²
E= 200 GPa
Show more…
Rigid bar BFCD is pinned at C and supported by steel bar AB at B and aluminum bar DE at D. A concentrated load P is applied to the rigid bar at F. Compute the Load P when the downward deflection at F (?=0.6 mm.) 3m A P DE aluminum bar A=900 mm² D E E= 70 GPa 1.5m B FV Rigid bar C ?=0.6 mm 3m AB steel bar A= 650 mm² E= 200 GPa

Added by -Ngeles W.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Rigid bar BFCD is pinned at C and supported by steel bar AB at B and aluminum bar DE at D. A concentrated load P is applied to the rigid bar at F. Compute the Load P when the downward deflection at F = 0.6 mm. The aluminum bar DE has a cross-sectional area A = 900 mm^2 and a modulus of elasticity E = 70 GPa. The steel bar AB has a cross-sectional area A = 650 mm^2 and a modulus of elasticity E = 200 GPa.
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov Kathleen Carty
David Collins verified

Madhur L and 59 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
problem-3-the-rigid-bar-abattached-to-two-vertical-rodsshown-in-the-below-figureis-horizontal-before-the-load-p50-kn-is-applieddetermine-the-slope-of-the-rigid-bar-ab-after-the-load-is-appli-89376

Problem 3 The rigid bar AB, attached to two vertical rods, shown in the below figure, is horizontal before the load P = 50 kN is applied. Determine the slope of the rigid bar AB after the load is applied. Steel L = 4 m A = 300 mm^2 E = 200 GPa Aluminum L = 3 m A = 500 mm^2 E = 70 GPa 3.5 m 2.5 m

Madhur L.
3-the-rigid-bar-ad-is-supported-by-the-pin-connected-rod-cb-that-has-a-cross-sectional-area-of-14-mm2-and-is-made-from-6061-t6-aluminum-e-689-gpa-determine-the-vertical-deflection-of-the-bar-20834

Adi S.
the-rigid-bar-is-pinned-at-a-and-supported-by-two-aluminum-rods-each-having-a-diameter-of-1-in-and-a-88546

The rigid bar is pinned at $A$ and supported by two aluminum rods, each having a diameter of 1 in. and a modulus of elasticity $E_{\mathrm{al}}=10\left(10^{3}\right) \mathrm{ksi} .$ If the bar is initially vertical, determine the displacement of the end $B$ when the force of 2 kip is applied.

Sri K.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,520 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,472 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,313 solutions
*

Transcript

-

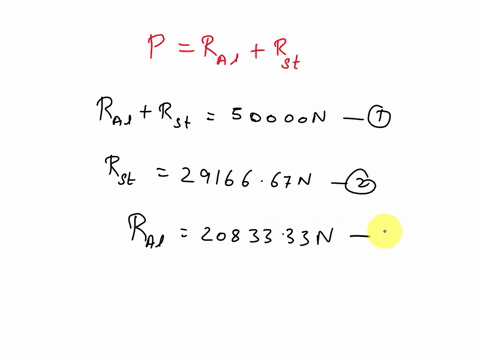

00:01 Hi, let's see balancing vertical force p equal to r aluminum plus r steel.
00:08 So, here r aluminum plus r steel equal to 50000 n.
00:19 Let's take this as equation 1 and r steel equal to 29166 .67 n.
00:27 Let's take this as equation 2.
00:30 Using equation 1 and 2, we have r aluminum equal to 20833 .33 n.
00:38 Let's take this as equation 3.
00:40 Now, delta l aluminum equal to r aluminum into l aluminum divided by a aluminum into e aluminum.
00:54 Let's substitute the value.
00:56 So, we have 20833 .33 into 3 divided by 500 into 10 to the power minus 6 into 70 into 10 to the power 9...
