R1 R2 R3 Q5 Given: R? = 195 ? (Ohm) R? = 23 ? (Ohm) R? = 1678 ? (Ohm) Find the equivalent resistance R_{eq} R_{eq} = ??? ? (Ohm) Answer: Check You are logged in as Yonas Assebe (Return to Portal) Engr 17 - 2017 Fall - Tatro
Added by Lori W.
Close
Step 1
The formula for calculating the equivalent resistance of two resistors in parallel is: 1/RE = 1/R1 + 1/R2 Substituting the given values, we have: 1/RE = 1/195 + 1/23 To simplify the equation, we can find the least common denominator (LCD) of 195 and 23, which Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 78 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the equivalent resistance of the circuit as shown in the diagram below; where, R1 = 3 Ω, R2 = 4 Ω, R3 = 2 Ω, R4 = 3 Ω, R5 = 2 Ω, R6 = 3 Ω, and R7 = 3 Ω.
Brjesh K.

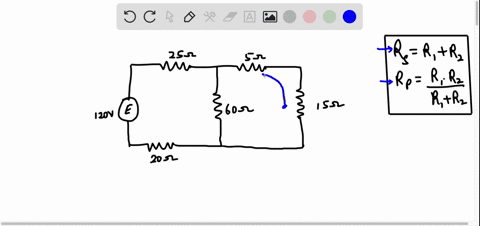

What is the equivalent resistance in the circuit? R1 = 25 ohms R3 = 5 ohms 120 V R2 = 60 ohms R4 = 15 ohms R5 = 20 ohms
