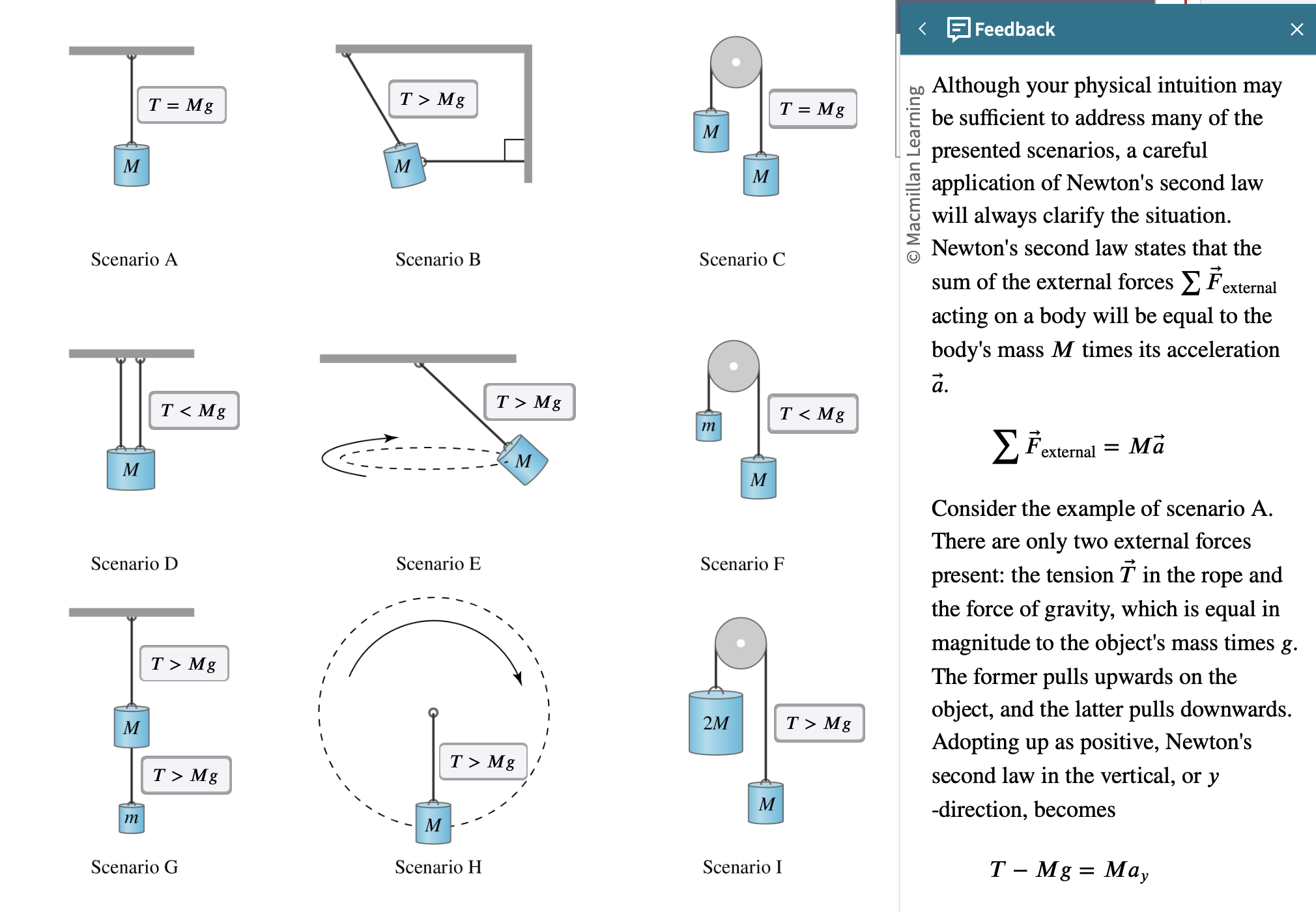

Scenario A T = Mg M Scenario B T > Mg M Scenario C T = Mg M M Scenario D T < Mg M Scenario E T > Mg M Scenario F T < Mg m M Scenario G T > Mg M T > Mg m Scenario H T > Mg M Scenario I 2M T > Mg M Feedback Although your physical intuition may be sufficient to address many of the presented scenarios, a careful application of Newton's second law will always clarify the situation. Newton's second law states that the sum of the external forces sum vec{F}_{external} acting on a body will be equal to the body's mass M times its acceleration vec{a}. sum vec{F}_{external} = M vec{a} Consider the example of scenario A. There are only two external forces present: the tension vec{T} in the rope and the force of gravity, which is equal in magnitude to the object's mass times g. The former pulls upwards on the object, and the latter pulls downwards. Adopting up as positive, Newton's second law in the vertical, or y-direction, becomes T - Mg = Ma_{y}
Added by Jovany S.
Close
Step 1
Identify the forces: In this scenario, the two forces acting on the body are the tension in the rope pulling upwards and the force of gravity pulling downwards. Show moreā¦
Show all steps
Your feedback will help us improve your experience
Timothy James and 55 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
As a force is a push or a pull, gravity is a great example of a force. Gravity remains a force that acts upon every object. In free fall, the acceleration of an object equals gravity. For objects on an incline, acceleration is equal to g sin(angle). There is a pattern in which forces accelerate objects. However, I am curious, if gravity is the force that acts on an object, for example, a ball, would the earth be considered the agent? With the statement of "In the absence of friction, if the sled is moving, it will stay in motion." I am curious as to how this concept applies to acceleration and velocity. If there is no force being applied to the object after the initial force, will the sled continue with a constant velocity and zero acceleration forever? Or, will the sled maintain the net force applied by the initial force and move with a constant acceleration since there are no other forces acting against the originally applied force? In simple terms, Newton's second law of motion states that a force is equal to mass times acceleration. It is simple to see this application as the force vector of weight, where the force is equal to the object's mass multiplied by the acceleration applied to it, which would be "g." However, I am curious as to how the force of tension is measured as I am sure that tension force depends on multiple variables, such as the number of ropes attached to the object, the angle of the rope's attachment, and the accelerating forces acting upon the object like gravity and friction. How would these be calculated to determine the force of tension, if possible? Weight is the result of the force of gravity, and as seen in the particle models below, is always pointing vertically downward. However, I am curious about the forces acting on an object when it is on the ground. What forces are acting on objects that prevent them from continuing to accelerate through the ground? Is the force that prevents objects from continuing to accelerate in a downward direction an equal and opposite force that counters the force of gravity, such as how Newton said there was (Newton's third law)? If air resistance is an example of drag, a force opposing the direction of motion, then I am curious as to how terminal velocity relates to this concept as an object falls through the air. Does the force vector of air resistance grow to a maximum amount and match the magnitude of the force of gravity to where the object does not experience a net force or acceleration as it falls through the air? Is it at this point when an object is deemed not to be free-falling?
Meghan R.

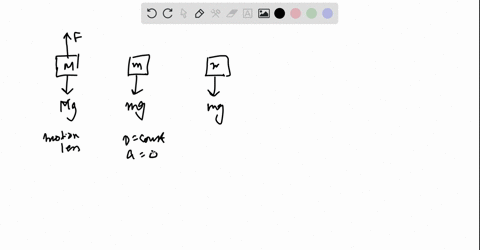

Forces Newton's 2nd Law connects motion with forces. Successfully applying Newton's second law requires a good grasp on kinematics (to find acceleration) and being able to add vectors (to sum up forces). Free-body diagrams and vector tables are very useful in these problems. I. Forces and acceleration For the following situations, draw a free-body diagram, roughly to scale, i.e. draw larger arrows for larger forces. If all forces are equal, then draw the forces with the same length. Indicate the direction of the acceleration, if any. Mass hangs on a string motionless Mass moves upward at a constant velocity The mass slows to a stop as it moves upward Which force needs to be stronger so that the mass accelerates upward? Which force needs to be stronger so that the mass accelerates downward? What can we say about the forces when the acceleration is zero?
Mayukh B.
25. According to Newton's third law, every force is accompanied by an equal and opposite reaction force. The reason that these forces do not cancel each other is * a. the action force acts for a longer time period b. one of the two forces is greater than the other c. the two forces act upon different objects; only forces on the same object can balance each other. d. the two forces are not always in the same direction 26. As you sit in your chair and study your physics (presuming that you do), the force of gravity acts downward upon your body. The reaction force to the force of the Earth pulling you downward is ___. * a. the force of the Earth pushing you upward b. the force of air molecules pushing you upwards c. the force of your body pulling the Earth upwards d. the force of the chair pushing you upward 27. Consider Newton's first law of motion to determine which of the following statements is true? * a. It would take an unbalanced force to cause an object to accelerate from rest. b. If an object is at rest, then there are no forces acting upon the object. c. If a football is moving upwards and rightwards towards the peak of its trajectory, then there are both rightwards and upwards forces acting upon it. d. It would take an unbalanced force to keep an object in motion. 28. Which of the following statements must be true of an object that experiences balanced forces (or unbalanced forces)? * a. If an object is moving with a constant speed in a circle, then the forces acting upon the object are balanced. b. Unbalanced forces cause objects to move. c. If a person is moving to the right, then the forces acting upon it are NOT balanced. d. If an object is accelerating at a constant rate of acceleration, then the forces acting upon the object are balanced. 29. Which law of motion says that a kicked ball would fly forever if it wasn't for forces like air friction and gravity? * a. First law of motion b. Second Law of motion c. Third Law of motion d. None of the above 30. What is the unit of measurement used in physics for force? * a. Meter b. k/ms c. Joules d. Newton
Sikandar B.
