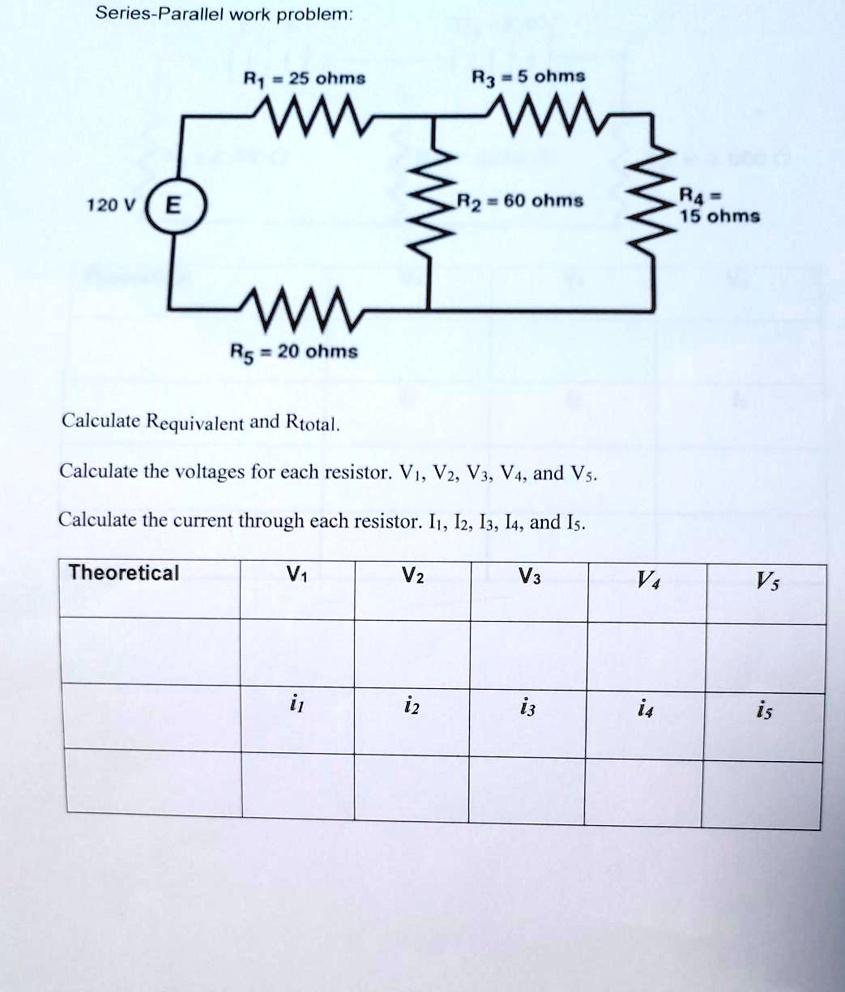

Series-Parallel work problem: 120 V E R1 = 25 ohms R2 = 60 ohms R3 = 5 ohms R4 = 15 ohms R5 = 20 ohms Calculate Requivalent and Rtotal. Calculate the voltages for each resistor. V1, V2, V3, V4, and V5. Calculate the current through each resistor. I1, I2, I3, I4, and I5. Theoretical V1 V2 V3 V4 V5 i1 i2 i3 i4 i5

          Series-Parallel work problem:

120 V E
R1 = 25 ohms
R2 = 60 ohms
R3 = 5 ohms
R4 = 15 ohms
R5 = 20 ohms

Calculate Requivalent and Rtotal.

Calculate the voltages for each resistor. V1, V2, V3, V4, and V5.

Calculate the current through each resistor. I1, I2, I3, I4, and I5.

Theoretical V1 V2 V3 V4 V5
i1 i2 i3 i4 i5

Series-Parallel work problem:

120 V E
R1 = 25 ohms
R2 = 60 ohms
R3 = 5 ohms
R4 = 15 ohms
R5 = 20 ohms

Calculate Requivalent and Rtotal.

Calculate the voltages for each resistor. V1, V2, V3, V4, and V5.

Calculate the current through each resistor. I1, I2, I3, I4, and I5.

Theoretical V1 V2 V3 V4 V5
i1 i2 i3 i4 i5

Added by Melanie M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

02/27/2023

Step 1

We have the following resistors: R1 = 25 ohms R2 = 60 ohms R3 = 5 ohms Ra = 15 ohms Rs = 20 ohms We can see that R1 and R2 are in series, so their equivalent resistance is: R12 = R1 + R2 = 25 + 60 = 85 ohms Now, R12 and R3 are in parallel, so their equivalent Show more…
