Duration: 25 Minutes (10 Points) 1. In a turning operation, cutting speed = 1.8 m/s. Feed = 0.30 mm/rev and depth of cut = 2.6 mm. Rake angle = 8°. After the cut, the deformed chip thickness = 0.56 mm. Determine (a) shear plane angle, (b) shear strain, and (c) material removal rate. Use the orthogonal cutting model as an approximation of the turning process.
Added by Victor B.
Close
Step 1
The shear plane angle (φ) can be calculated using the formula: φ = arctan(tan(α) / cos(β)) where α is the rake angle and β is the clearance angle. Since we are given the orthogonal cutting, the rake angle (α) is 0 degrees and the clearance angle (β) is 90 Show more…
Show all steps
Your feedback will help us improve your experience
Rashmi Prakash and 59 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In a turning operation, the spindle speed is set to provide a cutting speed of 1.7 m/s. The feed and depth of cut are 0.30 mm and 2.6 mm, respectively. The tool rake angle is 9°. After the cut, the deformed chip thickness is measured to be 0.38 mm. Determine (a) shear plane angle, (b) shear strain. Use the orthogonal cutting model as an approximation of the turning process.
Adi S.
Madhur L.

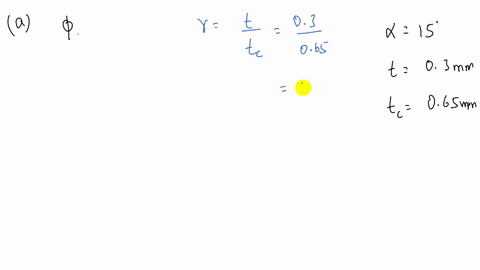

In an orthogonal cutting operation, the tool has a rake angle = 15°. The chip thickness before the cut = 0.30 mm and the cut yields a deformed chip thickness of 0.65 mm. Calculate (a) the shear plane angle and (b) the shear strain for the operation. a) 0.851 b) 2.185 c) 1.082 d) 1.392
