Short answer questions. Explain your reasoning and show your work. 1. An ideal battery and six identical bulbs are used to build the circuit shown. a. [5 pts] Rank the bulbs according to brightness. Explain. b. [3 pts] Bulb 3 is short circuited by connected a wire across it. When this is done, will the brightness of bulb 1 increase, decrease, or remain the same? Explain your reasoning.

          Short answer questions. Explain your reasoning and show your work.

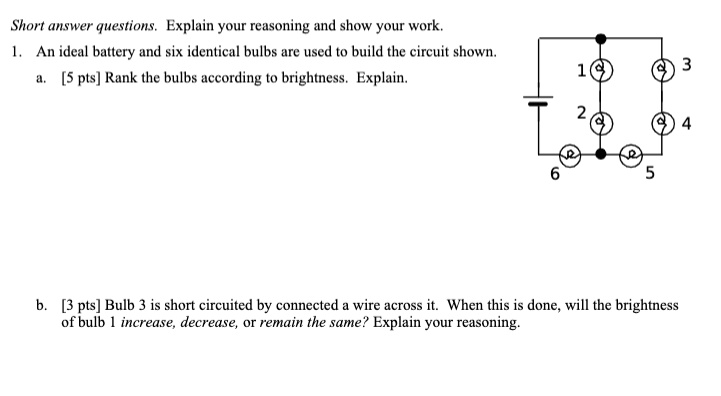

1. An ideal battery and six identical bulbs are used to build the circuit shown.
a. [5 pts] Rank the bulbs according to brightness. Explain.
b. [3 pts] Bulb 3 is short circuited by connected a wire across it. When this is done, will the brightness of bulb 1 increase, decrease, or remain the same? Explain your reasoning.

Short answer questions. Explain your reasoning and show your work.
1. An ideal battery and six identical bulbs are used to build the circuit shown.
a. [5 pts] Rank the bulbs according to brightness. Explain.
b. [3 pts] Bulb 3 is short circuited by connected a wire across it. When this is done, will the brightness of bulb 1 increase, decrease, or remain the same? Explain your reasoning.

Added by Michael Z.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

07/21/2023

Step 1

First, we need to find the equivalent resistance of the circuit. We can see that Bulb 1 and Bulb 2 are in series, so their resistances add up. Let's call the resistance of each bulb R. So, the equivalent resistance of Bulb 1 and Bulb 2 is 2R. Show more…

Show all steps

Thanks for your feedback!

Short answer questions. Explain your reasoning and show your work. An ideal battery and six identical bulbs are used to build the circuit shown. Rank the bulbs according to brightness. Explain. Bulb 3 is short circuited by connected a wire across it. When this is done, will the brightness of bulb 1 increase, decrease, or remain the same? Explain your reasoning.
