Question (1): (10 marks) For the figures shown below, find the equivalent inductance $L_{eq}$
Added by Steven G.
Close
Step 1
The inductors with values 2H and 3H are in series, so their equivalent inductance is the sum of their values: 2H + 3H = 5H. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts

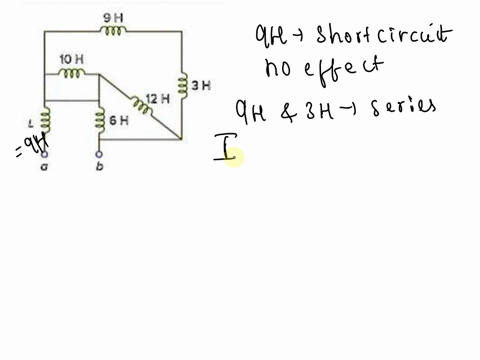

Recommended Videos

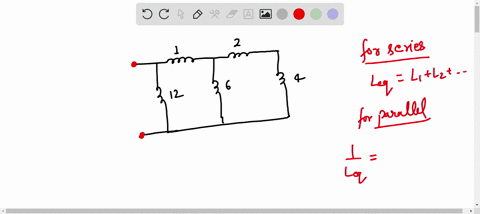

The equivalent inductance of the circuit given below is a. 15 H b. 3 H c. 6 H d. 8.1 H e. 5 H f. 8 H
