Show work for partial credit. The maximum number of points possible is 100. 1) Find the total moment about HINGE CD due to the force. Z K 2ft C Y A FORCE=25 LB $\theta_x = 80^\circ$ $\theta_y = 20^\circ$ 3 ft B LID X Box D $\theta_z = 107.1^\circ$
Added by Alex L.
Close
Step 1
First, we need to find the moment arm of the force about HINGE C. The moment arm is the perpendicular distance from the line of action of the force to the point of rotation (HINGE C). In this case, the moment arm is the distance from HINGE C to the line of action Show more…
Show all steps
Your feedback will help us improve your experience
Pritesh Ranjan and 81 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
(a) Use calculus to show that the maximum force in the situation of Example $20.2$ occurs when $y=a / \sqrt{2}$, and (b) find the magnitude of that maximum force.
Two couples act on the frame. If $d=4 \mathrm{ft}$, determine the resultant couple moment. Compute the result by resolving each force into $x$ and $y$ components and (a) finding the moment of each couple (Eq. $4-13$ ) and (b) summing the moments of all the force components about point $B$.

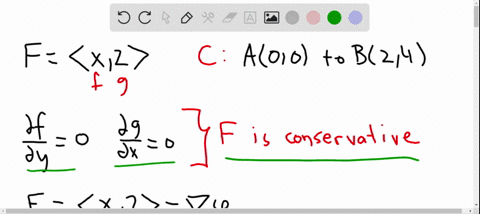

Find the work required to move an object in the following force fields along a line segment between the given points. Check to see whether the force is conservative. $$\quad \mathbf{F}=\langle x, 2\rangle \text { from } A(0,0) \text { to } B(2,4)$$
