2. Build a Simulink model that solves the differential equation ? = 3 sin(2t) the initial condition x(0) = -1.
Added by Lorena A.
Close
Step 1
Our goal is to build a Simulink model that solves this differential equation, given the initial condition x(0) = -1. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 86 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Problem 1: A linear dynamic system is described by the following differential equations: ÿ + 4ሡ + 4y = x; 2ሱ + x - y = u(t). a. Derive the input-output model for this system using y(t) as the output variable and u(t) as the input variable. (Hint: eliminate x and its derivative) b. Derive a state-space model using one variable and its successive derivatives (Type 2). Clearly indicate the ABCD matrices. c. Develop a Simulink model for the system on paper (no need to use Matlab/Simulink).
Adi S.
Given a second-order ordinary differential equation: frac{d^2f(t)}{dt^2} + 4frac{df(t)}{dt} + 3f(t) = r(t) (1) with the following initial conditions: f(0) = 1 and frac{df(0)}{dt} = 0. a) Express Equation (1) in state-space form. Clearly write down the A, B, C, and D matrices. Then find the state transition matrix and determine the solution for f(t) given that the input function r(t) is a unit step function. b) Write a MATLAB-Simulink program to find the computational solution for f(t) in Equation (1) with the input function r(t) given as a unit step function. Compare the analytical solution for f(t) from part (a) and the computational solution for f(t) from part (b) by plotting them together.
Supreeta N.

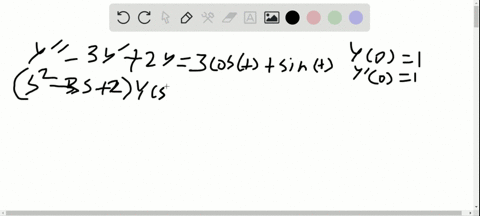

Use the Laplace transform to solve the given initial-value problem. $y^{\prime \prime}-3 y^{\prime}+2 y=3 \cos t+\sin t, \quad y(0)=1, \quad y^{\prime}(0)=1$.
The Laplace Transform and Some Elementary Applications
The Transform of Derivatives and Solution of Initial-Value Problems
