Single-phase full-bridge inverter has a resistive load of R-5 Ohm and the input voltage is 220 Volt. Which one is the rms output voltage Vol at the fundamental frequency?
Added by Alberto B.
Step 1
Given VD = 220 volts VM = 4 * VD / π VM = 4 * 220 / π VM ≈ 279.4 volts Show more…
Show all steps
Your feedback will help us improve your experience
Amita Prajapat and 86 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

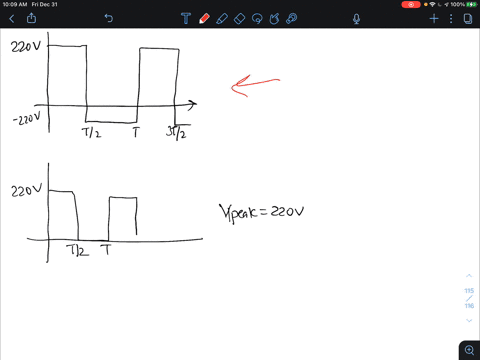

Single-phase full-bridge inverter has a resistive load of R-5 Ohm and the input DC voltage is 220 Volts. Which one is the peak off-state voltage VBB of each transistor: 220V, 198V, 311V, or 440V?
Penny R.
The single-phase full bridge inverter in the figure below has a resistive load of R = 5 ̐ and the DC input voltage is Vs = 220 V. Determine (a) the RMS output voltage at the fundamental frequency V01, (b) the output power Po, (c) the average, RMS, and peak currents of each transistor, (d) the average supply current Is, (e) the total harmonic distortion THD, and (f) the distortion factor DF.
Sri K.
You need a transformer that will draw 15 $\mathrm{W}$ of power from a 220 $\mathrm{V}$ power line, stepping the voltage down to $6.0 \mathrm{V}(\mathrm{rms}),$ (a) What will be the current in the secondary coil? (b) What should be the resistance of the secondary circuit? (c) What will be the equivalent resistance of the input circuit?
