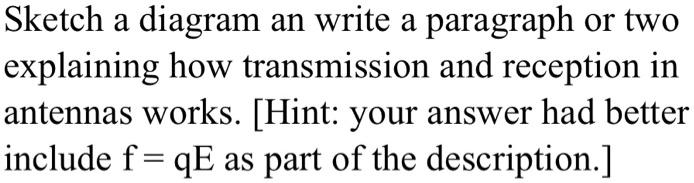

Sketch a diagram an write a paragraph or two explaining how transmission and reception in antennas works. [Hint: your answer had better include $f = qE$ as part of the description.]
Added by John W.
Close
Step 1
When transmitting, an antenna converts electrical signals into electromagnetic waves. This process involves an electrical current flowing through the antenna, which creates an electric field (E). According to the equation f = qE, where f represents the force Show more…
Show all steps
Your feedback will help us improve your experience
Linda Winkler and 55 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Create a Marconi Antenna and explain how it works and operates
Adi S.
An EM wave is generated by a magnetic dipole antenna as shown in the figure with Conceptual Question 9. The current in the antenna is produced by an $L C$ resonant circuit. The wave is detected at a distant point $P$. Using the coordinate system in the figure, write equations for the $x-y-$ and $z$ -components of the EM fields at a distant point $P$. (If there is more than one possibility, just give one consistent set of answers.) Define all quantities in your equations in terms of $L, C, E_{m}$ (the electric field amplitude at point $P$ ), and universal constants.
A dish antenna with a diameter of 20.0 m receives (at normal incidence) a radio signal from a distant source, as shown in Figure P21.73. The radio signal is a continuous sinusoidal wave with amplitude $F_{\max }=$ 0.20$\quad \mu \mathrm{V} / \mathrm{m} .$ Assume the antenna absorbs all the radiation that falls on the dish. (a) What is the amplitude of the magnetic field in this wave? (b) What is the intensity of the radiation received by the antenna? (c) What is the power received by the antenna?
