Sketch the electric field lines near two isolated and equal (a) positive point charges and (b) negative point charges. Include arrowheads to show the field directions.
Added by Brandon G.
Step 1
The field lines will be denser closer to the charges and will spread out as they move further away. The arrowheads on the field lines will point away from each charge, indicating the direction of the electric field. Show more…
Show all steps
Your feedback will help us improve your experience
Prabhat Tyagi and 62 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Sketch the electric field lines near two isolated and equal negative point charges. Include arrowheads to show the field directions.
Pritesh R.
Sketch the electric field lines produced by two equal negative charges separated by a distance $d$.

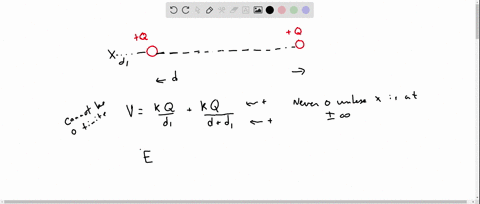

Two point charges of equal magnitude $Q$ are held a distance $d$ apart. Consider only points on the line passing through both charges. (a) If the two charges have the same sign, find the location of all points (if there are any) at which (i) the potential (relative to infinity) is zero (is the electric field zero at these points?), and (ii) the electric field is zero (is the potential zero at these points?). (b) Repeat part (a) for two point charges having opposite signs.
