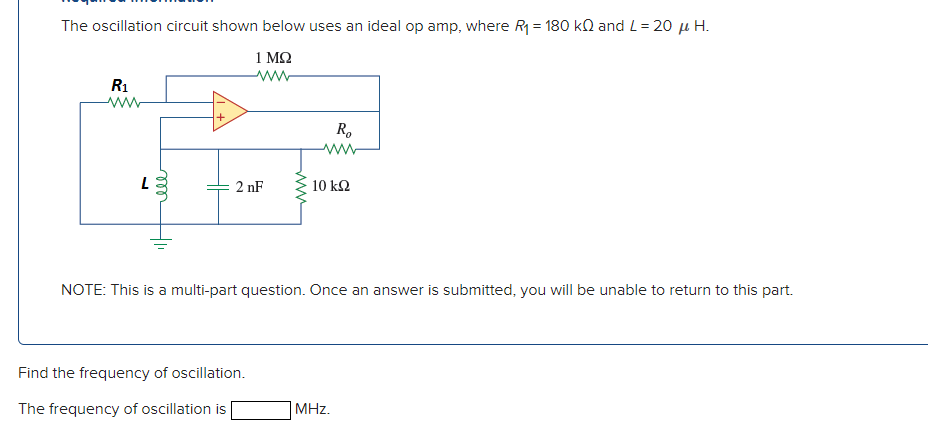

The oscillation circuit shown below uses an ideal op amp, where R1 = 180 k? and L = 20 ?H. Find the frequency of oscillation. The frequency of oscillation is MHz.
Added by Roja A.
Close
Step 1
Step 1:** Given values: - Conductance = 2 micro Hendricks = 2 x 10^-6 - Gap = 2 nano ferret = 2 x 10^-9 - Frequency of oscillation = sqrt(air) / 6 - Value of air = 2 x 10^-6 ** Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 97 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Solve
Elias R.

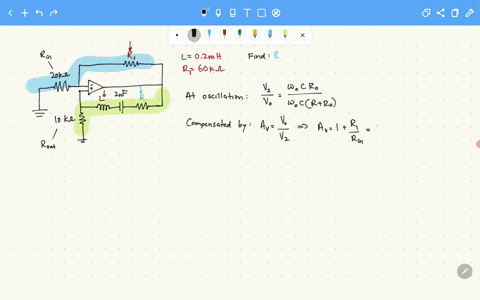

The oscillator circuit in Fig. 10.110 uses an ideal op amp. (a) Calculate the minimum value of $R_{o}$ that will cause oscillation to occur. (b) Find the frequency of oscillation.
A spring with spring constant $k$ is suspended vertically from a support and a mass $m$ is attached. The mass is held at the point where the spring is not stretched. Then the mass is released and begins to oscillate. The lowest point in the oscillation is $20 \mathrm{cm}$ below the point where the mass was released. What is the oscillation frequency?
